Intech Studio KNOT
€131,89
Pāriet uz produkta informāciju
Out of stock
Intech Studio KNOT
Intech Studio
€131,89
Knot is a compact and versatile USB-MIDI host designed to bridge the gap between classic MIDI hardware such as synthesizers or guitar pedals and modern USB-MIDI devices. It enables direct control of MIDI gear via Grid Series controllers or any class-compliant USB controller. Equipped with dual TRS MIDI ports supporting both A and B standards, Knot ensures compatibility with a wide range of setups. With standalone operation, multiple connection options, and rugged aluminium housing, it is perfectly suited for studio and live performance environments.
Key features

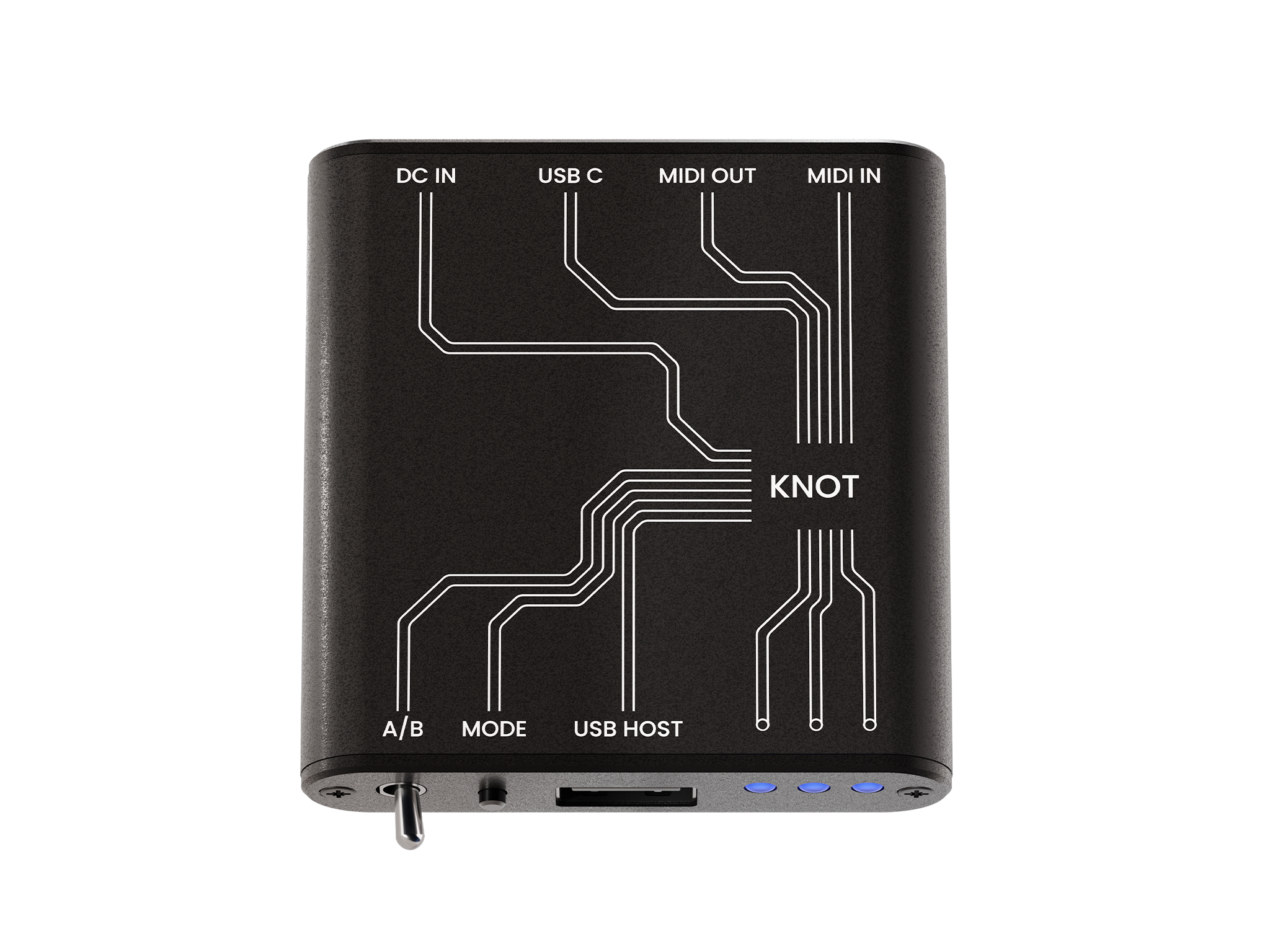

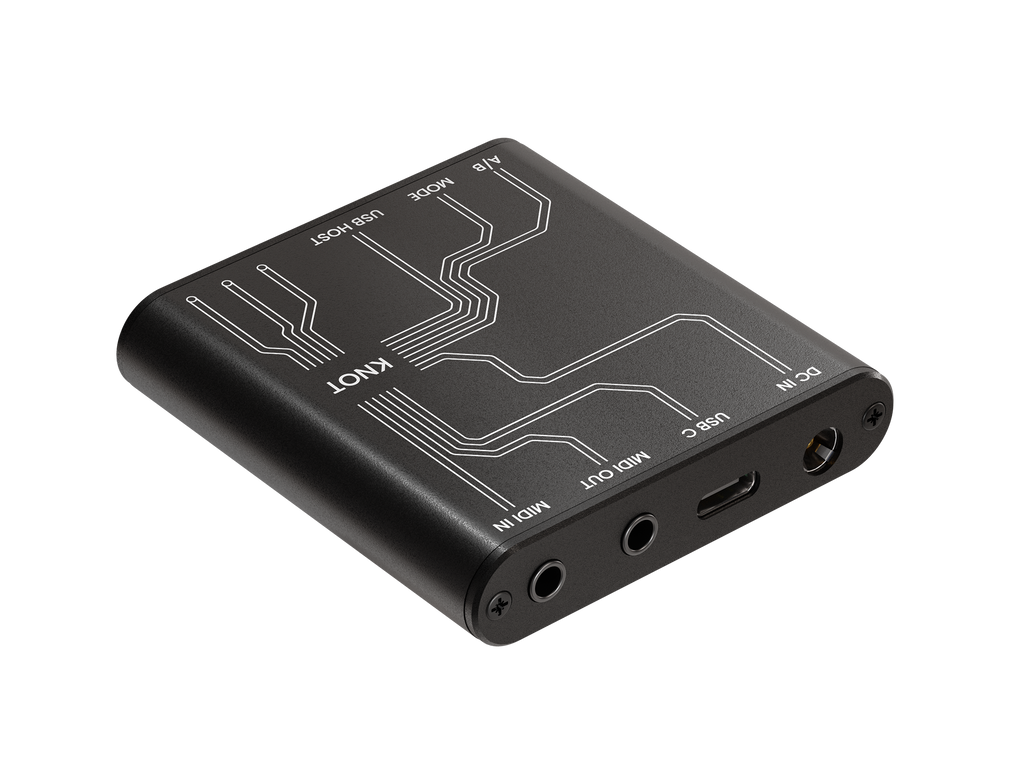

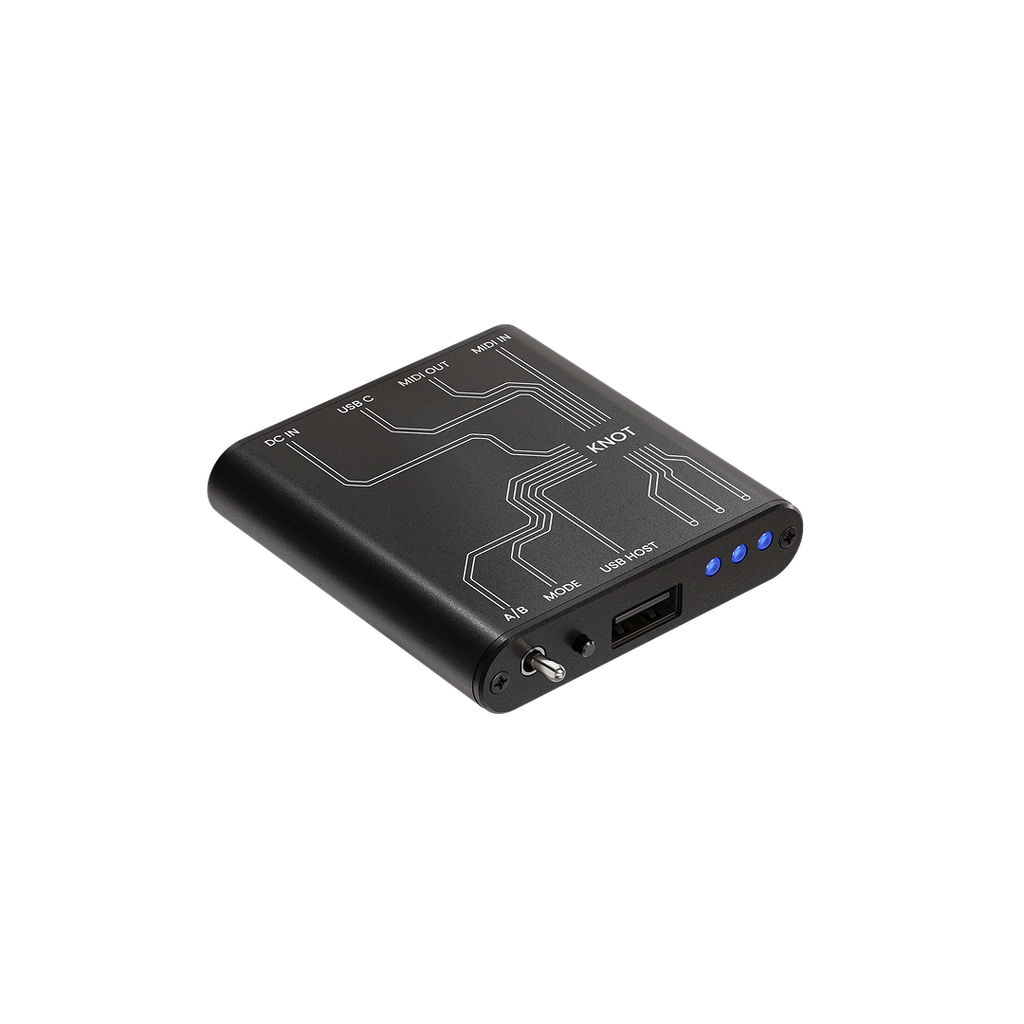

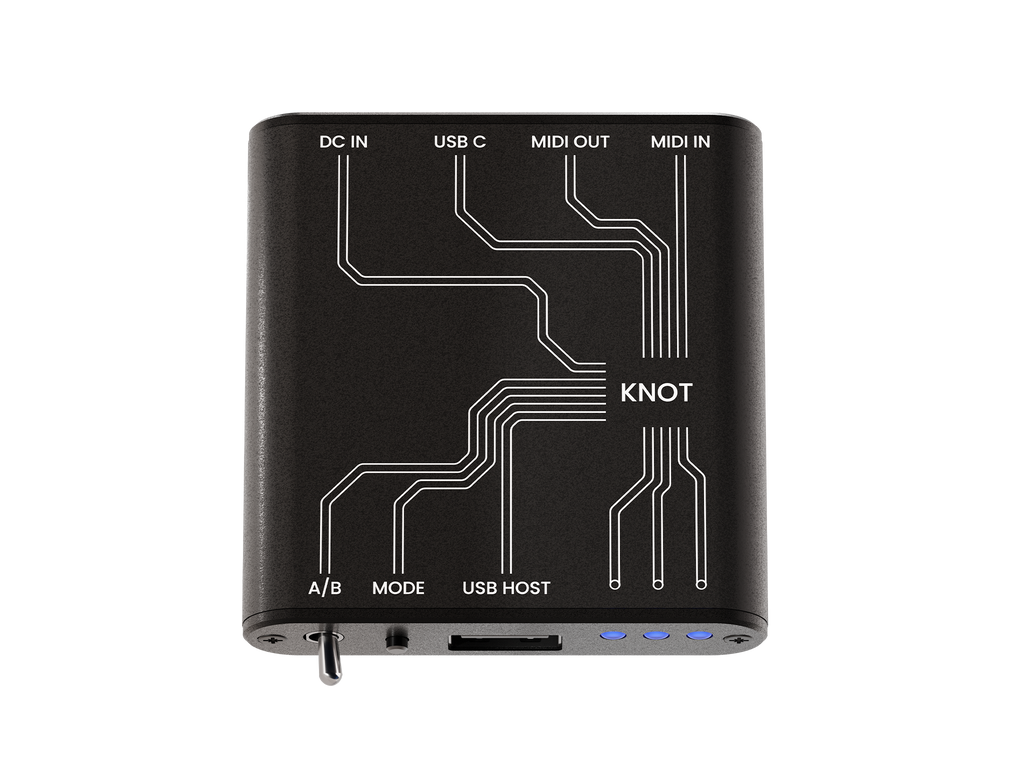

| Device type | Standalone USB-MIDI host |
| USB ports | USB-A host port, USB-C for power and firmware updates |
| MIDI connections | TRS MIDI IN and OUT (A/B standards supported) |

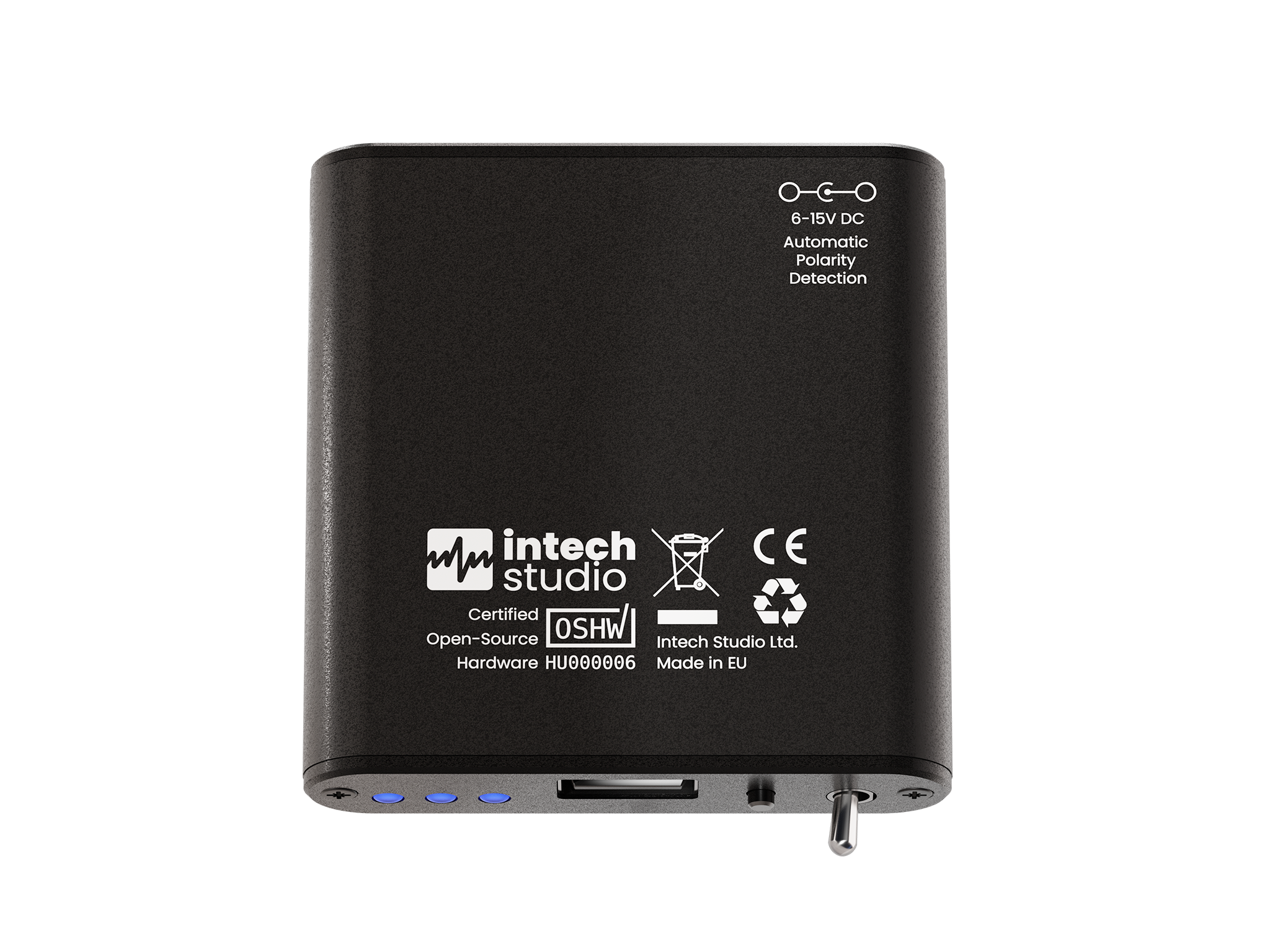

| DC input | 6–12 V DC with automatic polarity detection (5.5 × 2.1 mm plug) |
| Controls | A/B switch for TRS wiring, MODE button for mode selection and bootloader access |
| Status indicators | 3 LEDs showing MIDI TX/RX activity and mode status |
| Operating modes | Green: HOST only to OUT; Blue: MIDI IN + HOST merged to OUT |
| Material | Black aluminium housing |
| Dimensions | 60 × 60 × 10 mm |
| Weight | 120 g |
| Compatibility | Works with Grid Series and any class-compliant USB-MIDI controller |
Included Accessories
- USB-C cable
- User manual
Included Software
- Firmware update support via USB-C
- Plug-and-play MIDI class compliance
