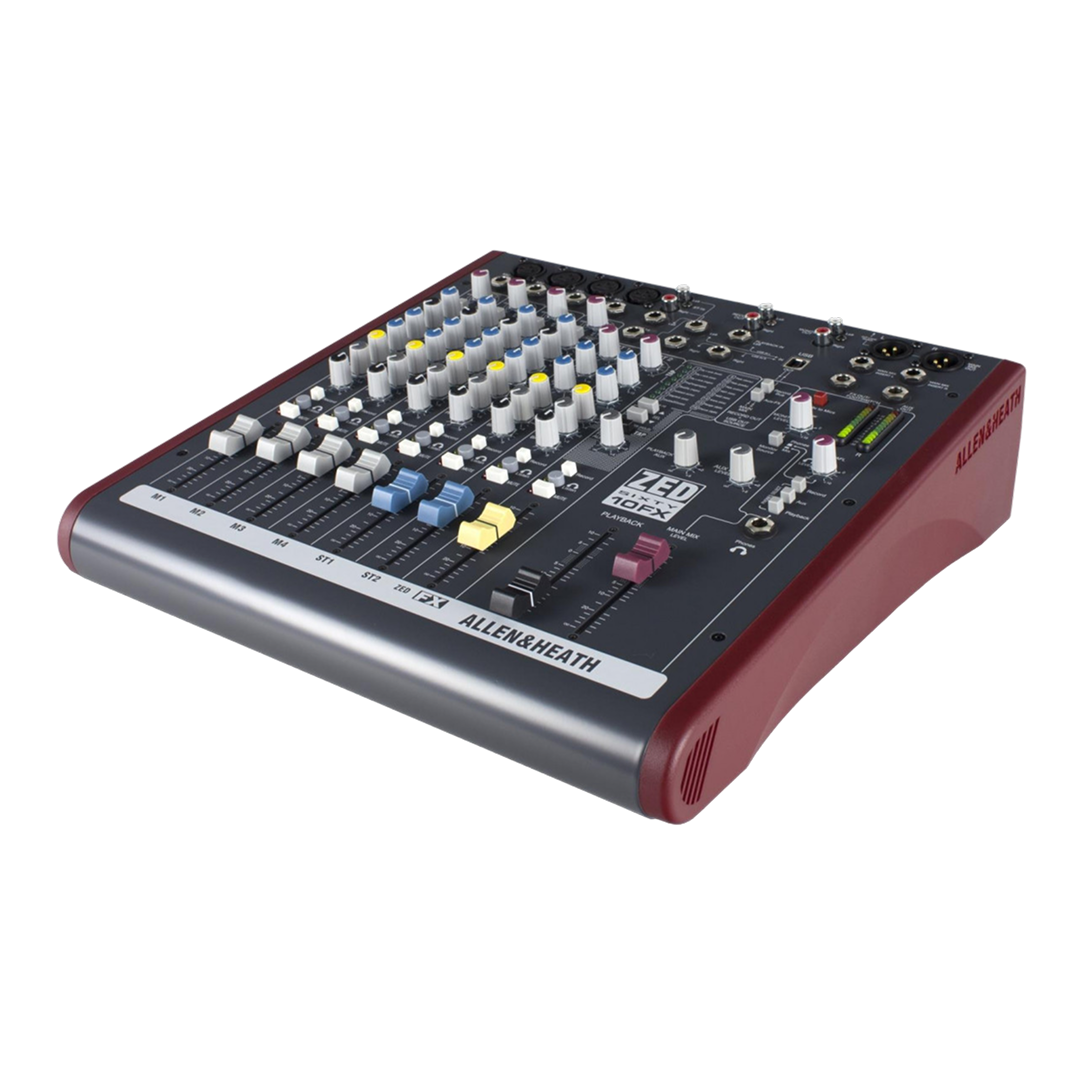

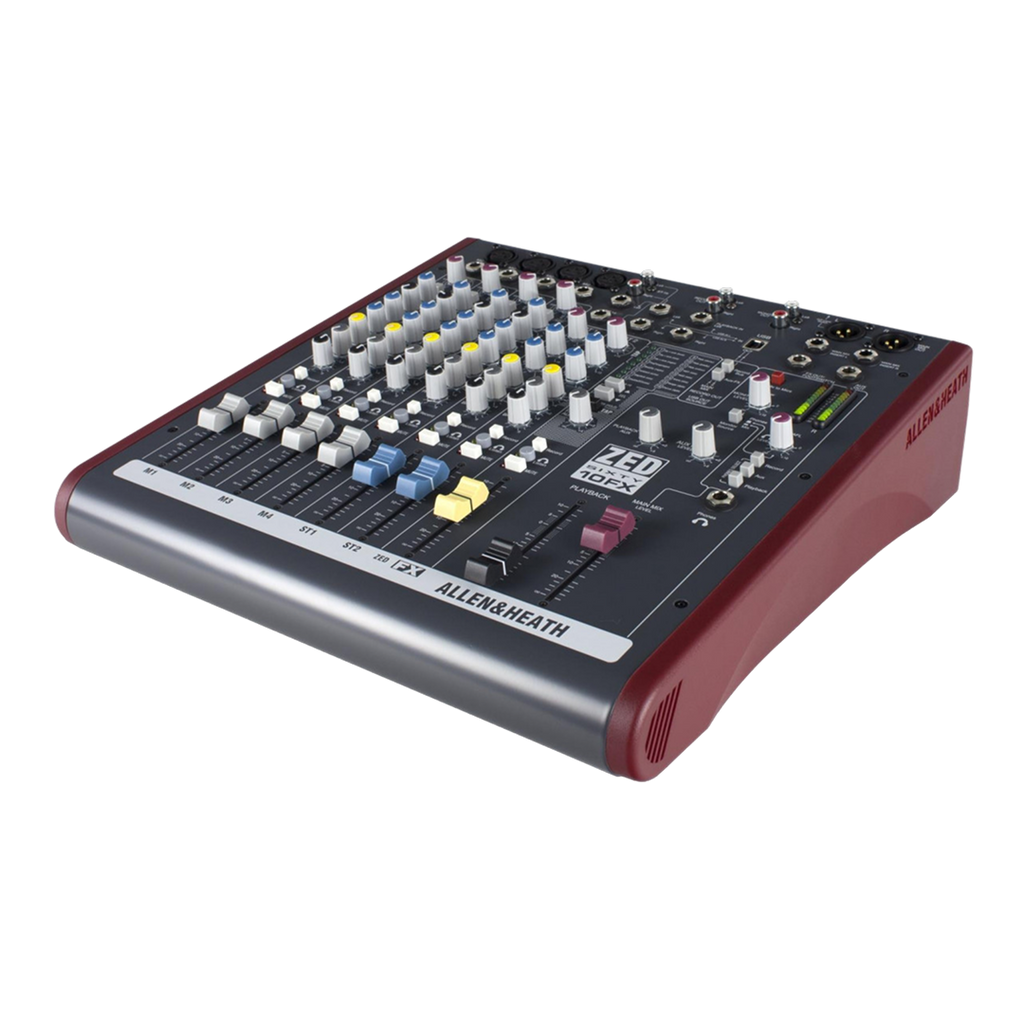

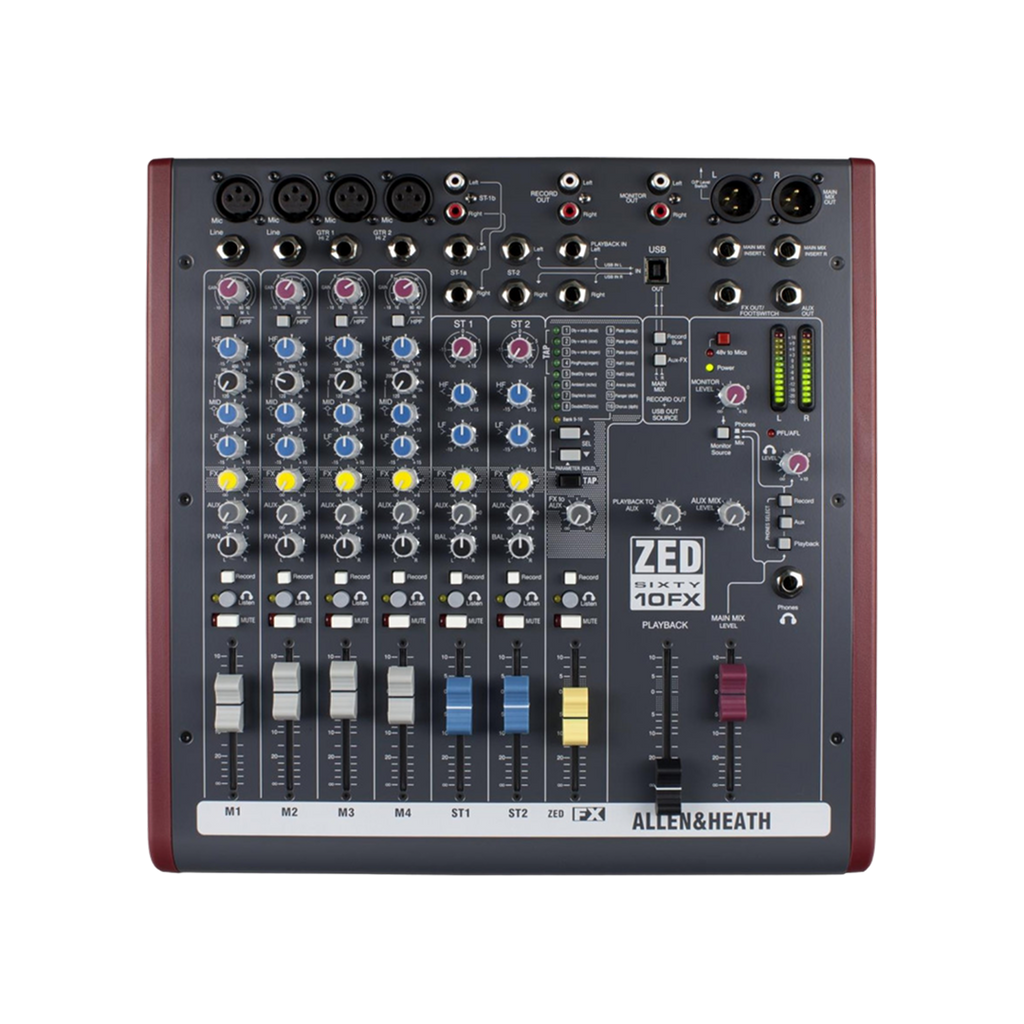

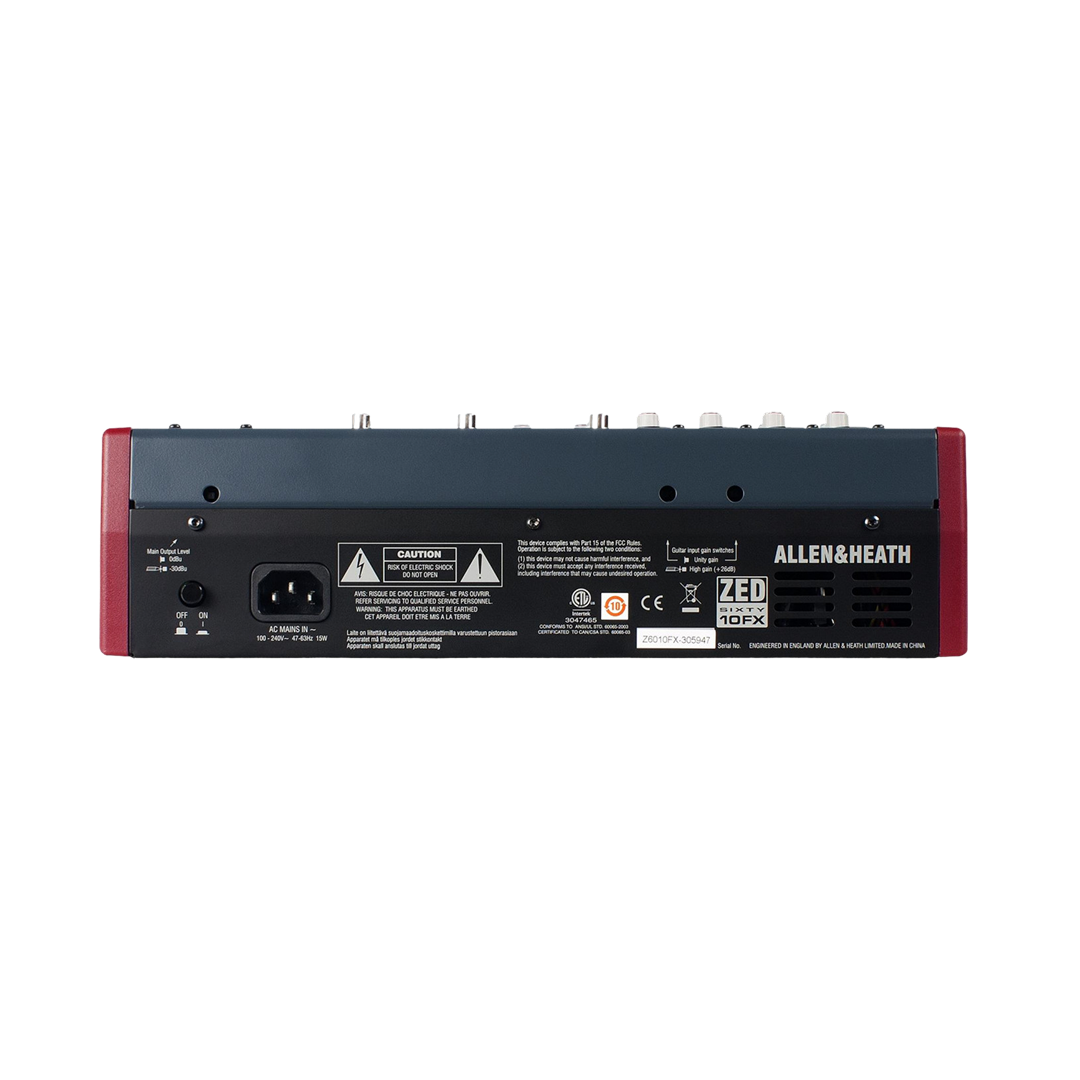

The Allen & Heath ZED60-10FX is a compact 10-input analogue mixer with built-in digital effects and USB audio connectivity, designed for live performance, rehearsal spaces, home studios, podcasting, schools, houses of worship, and small venue sound reinforcement. Based on the popular ZED-10FX, the ZED60-10FX replaces rotary level controls with professional 60mm faders for more precise mixing while retaining Class-A FET Hi-Z instrument inputs, MusiQ EQ, configurable USB audio, and 16 high-quality onboard effects.
Key features
- 10-input analogue mixer
- 4 mic/line input channels
- 2 Class-A FET high-impedance guitar inputs
- 2 stereo line input channels
- 16 built-in digital effects
- Configurable USB stereo audio interface
- 60mm professional channel faders
- 3-band MusiQ EQ with swept midrange on mono channels
- 1 pre-fade Aux send and 1 post-fade FX send
- Balanced XLR main outputs with inserts
- 48V phantom power
- 12-segment LED metering
Overview
| Type | Compact Analogue Mixer with USB Audio and Digital Effects |
| Channels | 10 Inputs (4 Mono + 2 Stereo Channels) |
| Mic Preamps | 4 Low-Noise Mic/Line Preamps |
| Instrument Inputs | 2 Class-A FET Hi-Z Guitar Inputs with Gain Boost |
| Stereo Inputs | 2 Stereo Line Channels |
| EQ (Mono Channels) | 3-Band MusiQ EQ with Swept Midrange |
| EQ (Stereo Channels) | 2-Band EQ |
| Aux Sends | 1 Pre-Fade Auxiliary Send |
| FX Sends | 1 Post-Fade FX Send |
| Built-in Effects | 16 Digital Effects (Reverb, Delay, Chorus, Flanger, Doubler and More) |
| Main Outputs | Balanced Stereo XLR Outputs with Inserts |
| Monitor Outputs | Stereo RCA Monitor Outputs |
| Record Outputs | Stereo RCA Record Outputs |
| USB Interface | 2×2 USB Audio Interface |
| USB Resolution | 16-bit, 44.1 / 48 kHz |
| Headphone Output | 1 × 1/4" Stereo Headphone Output |
| Metering | 12-Segment LED Metering |
| Phantom Power | Global +48V Phantom Power |
| Frequency Response | 10 Hz – 30 kHz |
| Dimensions | 336 × 274 × 95 mm |
| Weight | Approximately 3.3 kg |
Included Content
- ZED60-10FX analogue mixer
- Integrated USB audio interface
- 16 onboard digital effects
- Internal universal power supply
- IEC power cable
- User documentation
Creative Tools
- 16 studio-quality digital effects including reverbs, delays, chorus, flanger and doubler
- Class-A FET Hi-Z inputs for direct guitar and bass connection without a DI box
- Configurable USB stereo recording and playback with Mac and Windows computers
- Professional 60mm faders for precise level control
- MusiQ EQ with swept midrange for detailed tonal shaping
- Pre-fade auxiliary send for monitor mixes
- Post-fade FX send for internal or external effects processing
- Separate monitor, record and main output routing
- Channel inserts for external dynamics processors
- Balanced XLR outputs for professional PA systems and studio monitoring
Ideal For
- Solo performers and singer-songwriters
- Small bands and rehearsal spaces
- Home recording studios
- Podcasting and livestreaming
- Schools and educational facilities
- Churches and houses of worship
- Small venue live sound
- Users wanting analogue mixing with built-in effects and USB recording
