Allen & Heath Qu-6D
€2.779,00
Pāriet uz produkta informāciju
Ir pieejams
Allen & Heath Qu-6D
Ražotājs: Allen & Heath
€2.779,00
Jautājumi?
Zvani / WhatsApp
+37120273545
Raksti uz
hello@defset.eu

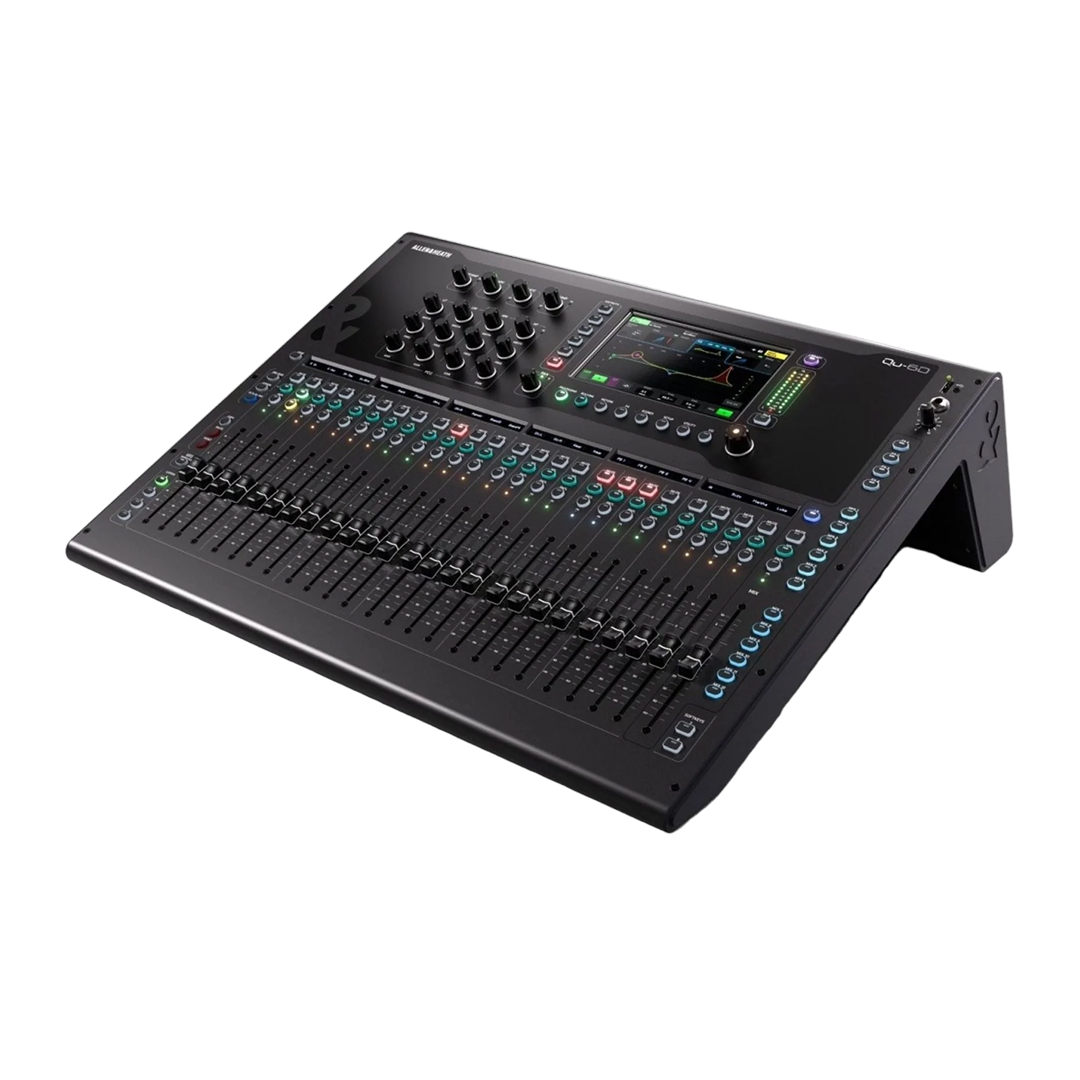

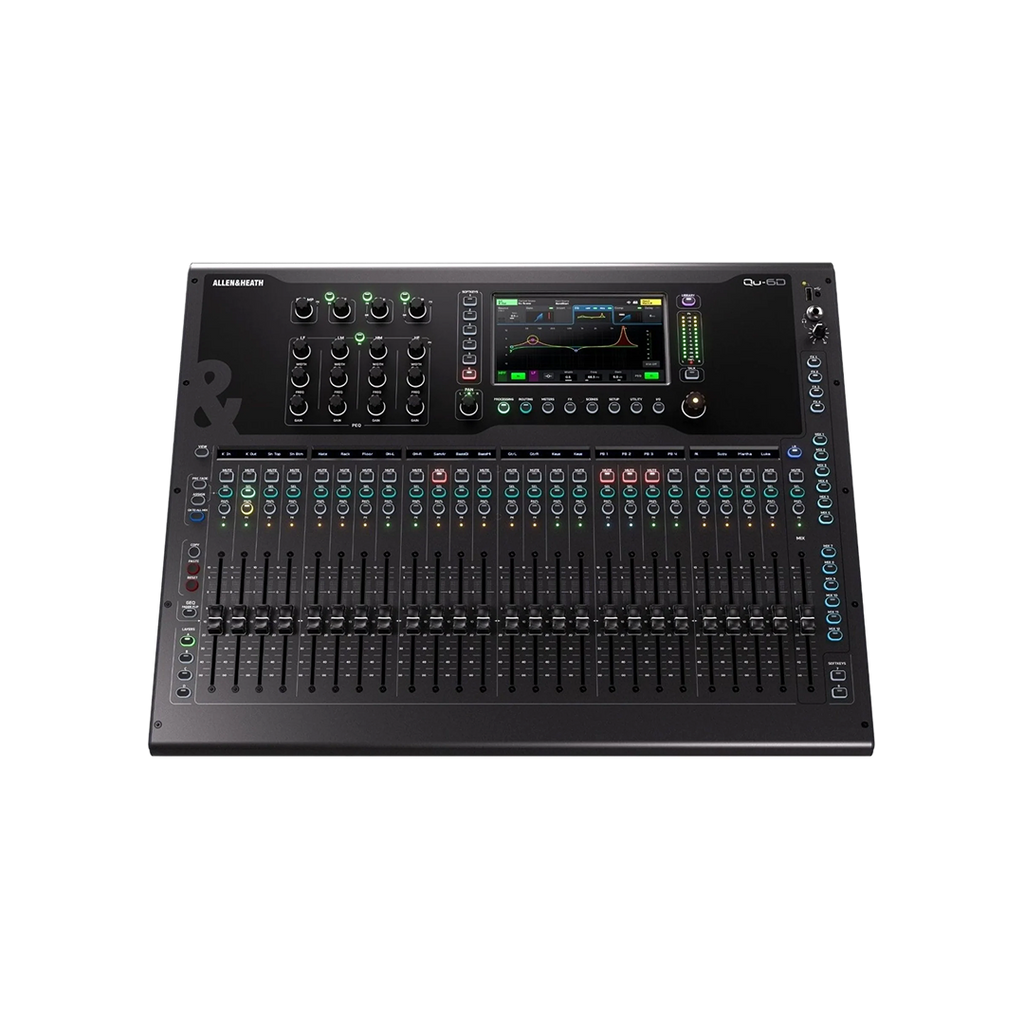

The Allen & Heath Qu-6D is a professional 96kHz digital mixing console with integrated Dante networking, designed for live sound, houses of worship, broadcast, theatres, corporate AV, touring productions, and recording environments. Powered by Allen & Heath’s XCVI FPGA processing engine, the Qu-6D combines 38-input mixing capacity, 25 motorised faders, multitrack recording, DEEP Processing support, and a built-in 16×16 Dante interface, making it an ideal solution for modern networked audio workflows.
Key features
- 38-input / 24-output digital mixer with integrated Dante
- Built-in 16×16 Dante interface at 48kHz and 96kHz
- 96kHz XCVI FPGA processing engine
- 24 recallable XLR/TRS combo mic-line preamps
- 25 motorised 100mm faders
- 7" capacitive touchscreen
- 6 stereo FX engines with dedicated returns
- 32×32 USB-C audio interface
- 32-channel SD card recording and playback
- 128×128 SLink expansion port
- Automatic Microphone Mixer (AMM)
- Gain Assistant and Feedback Assistant
- Remote control via Windows, macOS, iOS and Android apps
Overview
| Type | Digital Mixing Console with Dante Networking |
| Mix Capacity | 38 Inputs to Mix (32 Mono/Linkable + 3 Stereo) |
| Mic Preamps | 24 Recallable Mic/Line Preamps |
| Processing Engine | 96kHz XCVI FPGA Core |
| Display | 7" Capacitive Touchscreen |
| Faders | 25 × 100mm Motorised Faders |
| Layers | 4 Customisable Channel Layers |
| Buses | 12 Mixes (6 Mono/Linkable Aux/Group + 6 Stereo Aux/Group) |
| Matrix Outputs | 4 Mono/Linkable Matrix Mixes |
| FX Engines | 6 Internal Stereo Multi-FX Engines |
| USB Interface | 32×32 USB-C Audio Interface |
| SD Recording | 16×16 @ 96kHz or 32×32 @ 48kHz |
| Dante | 16×16 Dante Interface (48kHz / 96kHz) |
| Expansion | 128×128 Intelligent SLink Port |

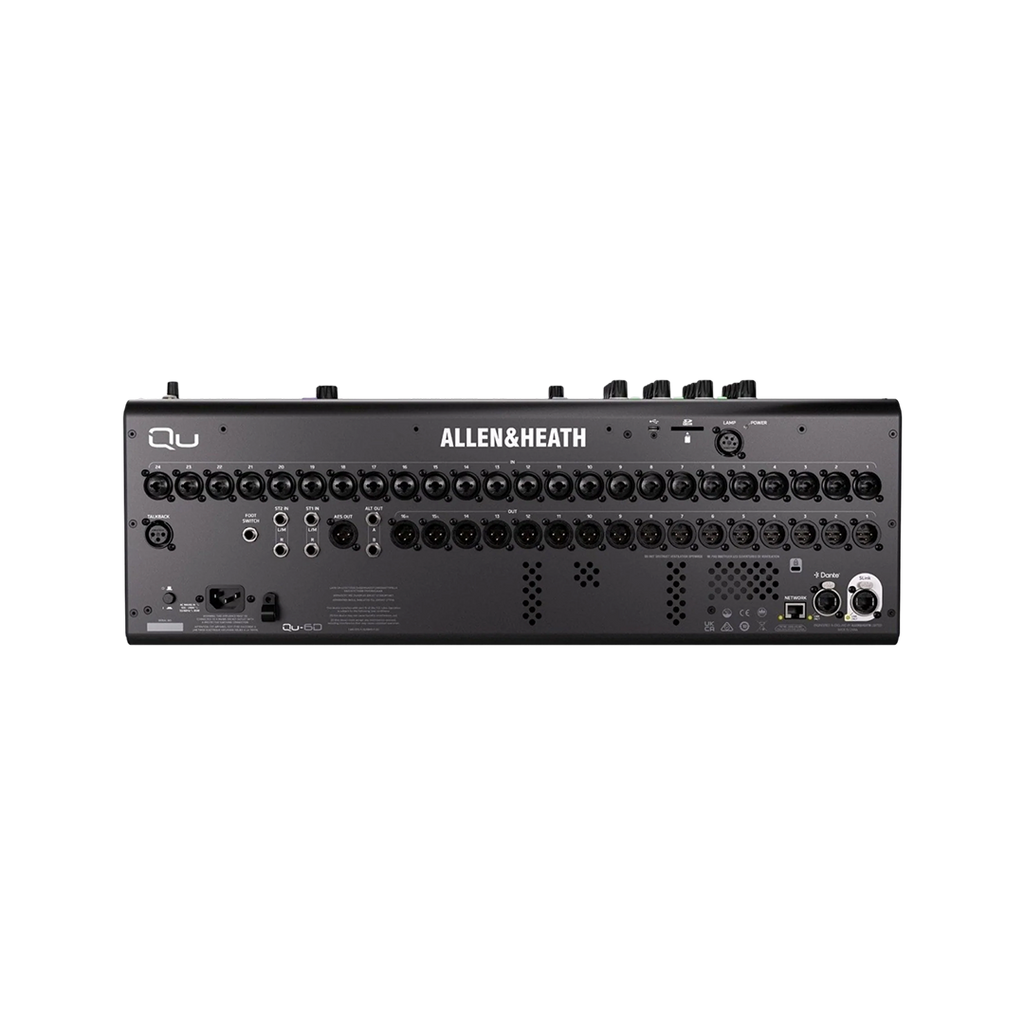

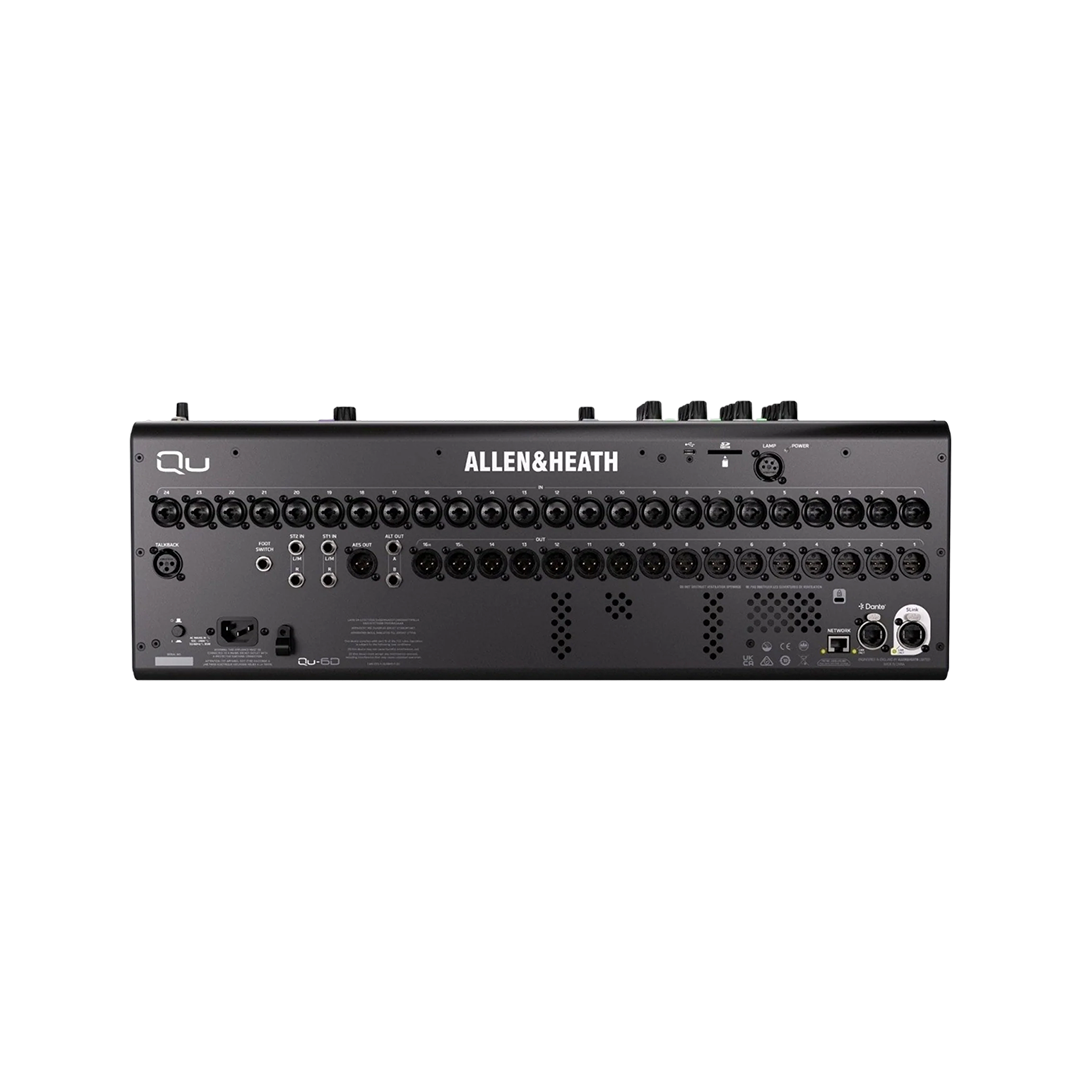

| Analogue Inputs | 24 XLR/TRS Combo Inputs + 2 Stereo Inputs + Talkback |
| Analogue Outputs | 16 XLR Outputs + 2 TRS Outputs |
| Digital Outputs | AES3 Stereo Digital Output |
| Networking | RJ45 Control Port + Dedicated Locking EtherCon Dante Port |
| Dimensions | 632 × 500 × 214 mm |
| Weight | Approximately 14 kg |
Included Content
- Qu-6D digital mixer
- Integrated 16×16 Dante networking interface
- 32×32 USB-C recording interface
- SD card multitrack recording system
- SLink expansion connectivity
- Power cable
- Qu-MixPad and Qu4You remote-control software
Creative Tools
- Six stereo FX engines including reverb, delay, chorus, flanger and modulation effects
- 32-channel Automatic Microphone Mixer (AMM)
- Gain Assistant for rapid input setup and optimisation
- Feedback Assistant with up to 16 suppression filters per output
- DEEP Processing compatibility with premium Allen & Heath processing models
- Integrated Dante networking for audio distribution and system integration
- 32×32 USB multitrack recording and DAW connectivity
- Multitrack SD recording without requiring a computer
- SLink connectivity for Everything I/O stageboxes and remote expansion
- Fully patchable routing architecture with customisable layers and SoftKeys
Ideal For
- Professional live sound engineers
- Houses of worship and multi-room facilities
- Corporate AV and conference centres
- Broadcast and streaming production
- Theatres and performing arts venues
- Touring productions requiring Dante networking
- Recording and rehearsal studios
- Audio installations with networked stageboxes
- Users seeking advanced digital mixing with integrated Dante connectivity
