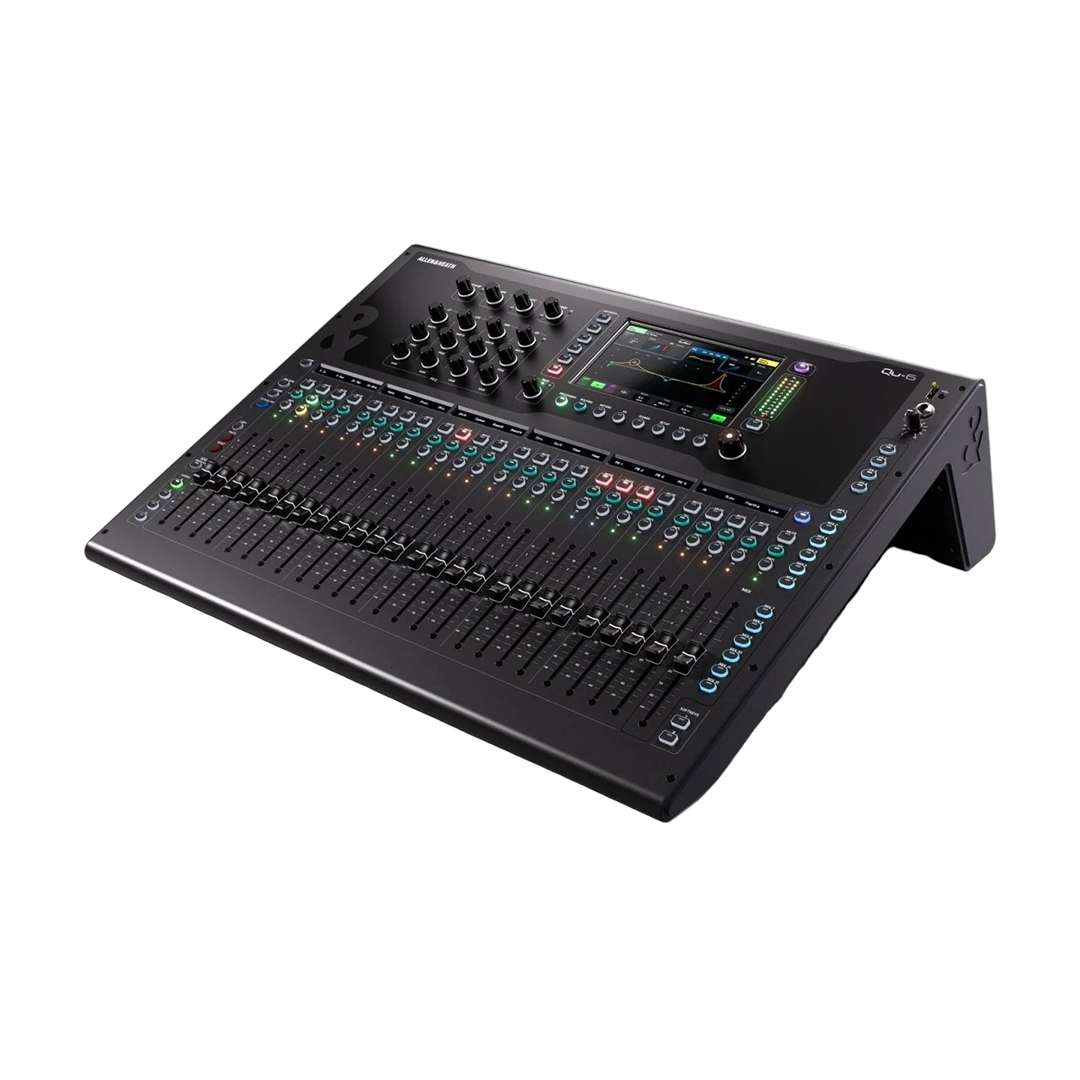

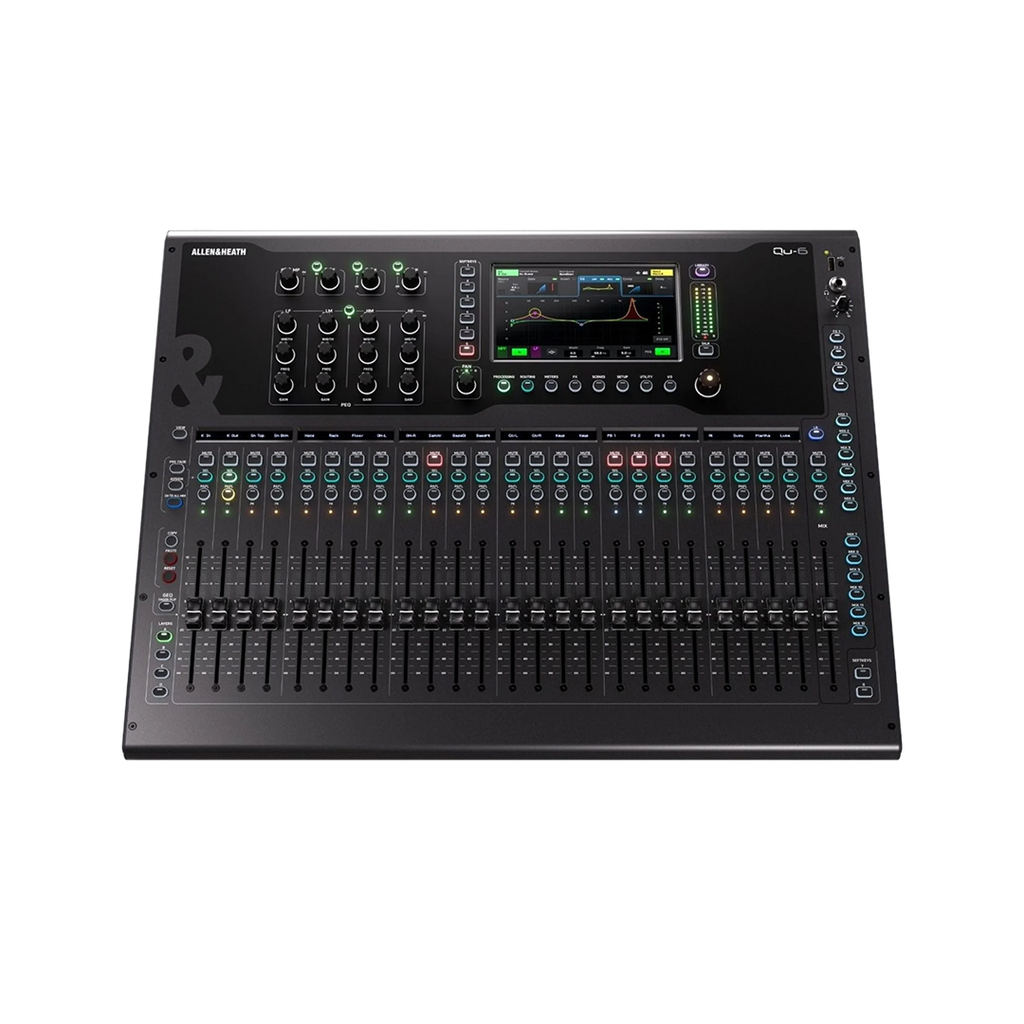

Allen & Heath Qu-6
€2.499,00
Pāriet uz produkta informāciju
Ir pieejams
Allen & Heath Qu-6
Ražotājs: Allen & Heath
€2.499,00
Jautājumi?
Zvani / WhatsApp
+37120273545
Raksti uz
hello@defset.eu
The Allen & Heath Qu-6 is a professional 96kHz digital mixing console designed for live sound, houses of worship, theatres, broadcast environments, corporate AV, and recording applications. Powered by Allen & Heath’s next-generation XCVI FPGA processing engine, the Qu-6 combines 38-input mixing capacity, 25 motorised faders, advanced processing, multitrack recording, and extensive expansion options in a compact and intuitive format. Building on the success of the original Qu series, the Qu-6 introduces a redesigned workflow, customisable layers, DEEP processing support, and seamless integration with Allen & Heath's Everything I/O ecosystem.
Key features
- 38-input / 24-output digital mixer
- 96kHz XCVI FPGA processing engine
- 25 motorised 100mm faders
- 24 recallable XLR/TRS combo mic-line preamps
- 7" capacitive touchscreen interface
- 6 stereo FX engines with dedicated returns
- 32×32 USB-C audio interface
- 32-channel SD card multitrack recording and playback
- 128×128 SLink expansion port
- Automatic Microphone Mixer (AMM)
- Feedback Assistant and Gain Assistant
- DEEP Processing ready
- Remote control via Windows, macOS, iOS and Android apps
Overview
| Type | Digital Mixing Console |
| Mix Capacity | 38 Inputs to Mix (32 Mono/Linkable + 3 Stereo) |
| Mic Preamps | 24 Recallable Mic/Line Preamps |
| Processing Engine | 96kHz XCVI FPGA Core |
| Display | 7" Capacitive Touchscreen |
| Faders | 25 × 100mm Motorised Faders |
| Layers | 4 Customisable Channel Layers |
| Buses | 12 Mixes (6 Mono/Linkable + 6 Stereo) |
| Matrix Outputs | 4 Mono/Linkable Matrix Mixes |
| FX Engines | 6 Internal Stereo Multi-FX Engines |
| USB Interface | 32×32 USB-C Audio Interface |
| SD Recording | 16×16 @ 96kHz or 32×32 @ 48kHz |
| Expansion | 128×128 SLink Port |

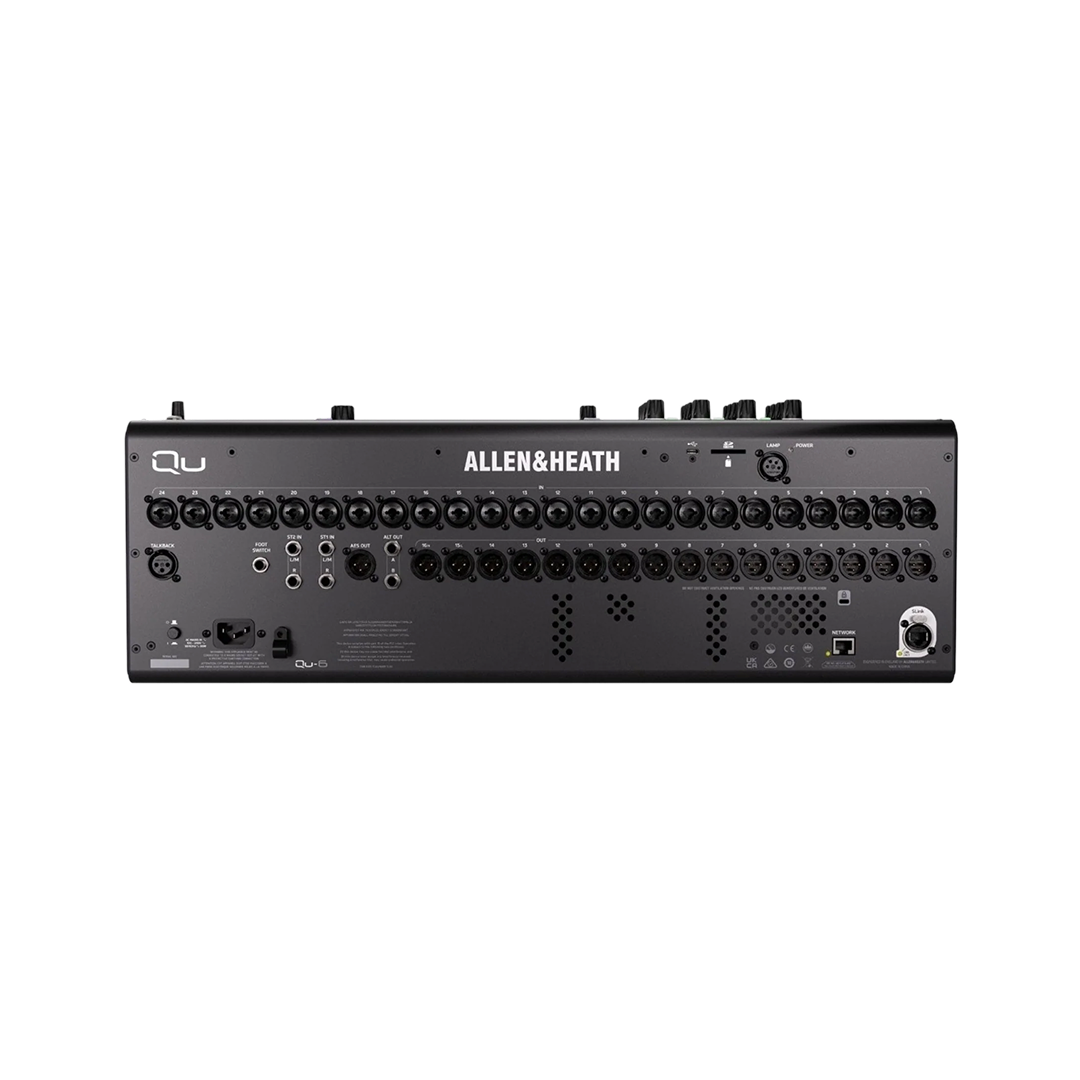

| Analogue Inputs | 24 XLR/TRS Combo Inputs + 2 Stereo Inputs + Talkback |
| Analogue Outputs | 16 XLR Outputs + 2 TRS Outputs |
| Digital Outputs | AES3 Stereo Output |
| Networking | RJ45 Ethernet Control Port |
| Dimensions | 632 × 500 × 214 mm |
| Weight | Approximately 14 kg |
Included Content
- Qu-6 digital mixer
- 32×32 USB-C audio interface
- SD card multitrack recording system
- SLink expansion connectivity
- Power cable
- Qu-MixPad and Qu4You remote control applications
Creative Tools
- Six stereo FX engines featuring reverb, delay, chorus, flanger and modulation effects
- 32-channel Automatic Microphone Mixer (AMM)
- Gain Assistant for automatic gain setup and optimisation
- Feedback Assistant with up to 16 suppression filters per output
- DEEP Processing compatibility with premium Allen & Heath processing models
- Fully customisable fader layers and routing architecture
- 32×32 USB multitrack recording and DAW integration
- SD card multitrack recording without a computer
- SLink connectivity for Everything I/O stageboxes and expansion systems
- Comprehensive dynamics, EQ and processing on every channel
Ideal For
- Professional live sound engineers
- Houses of worship
- Theatres and performance venues
- Corporate AV and conference facilities
- Broadcast and streaming production
- Touring productions and rental companies
- Recording and rehearsal studios
- Users requiring expanded local I/O without moving to the SQ series
- Installations needing flexible stagebox expansion and modern digital workflows
