Allen & Heath Qu-5
€1.939,00
Pāriet uz produkta informāciju
Ir pieejams

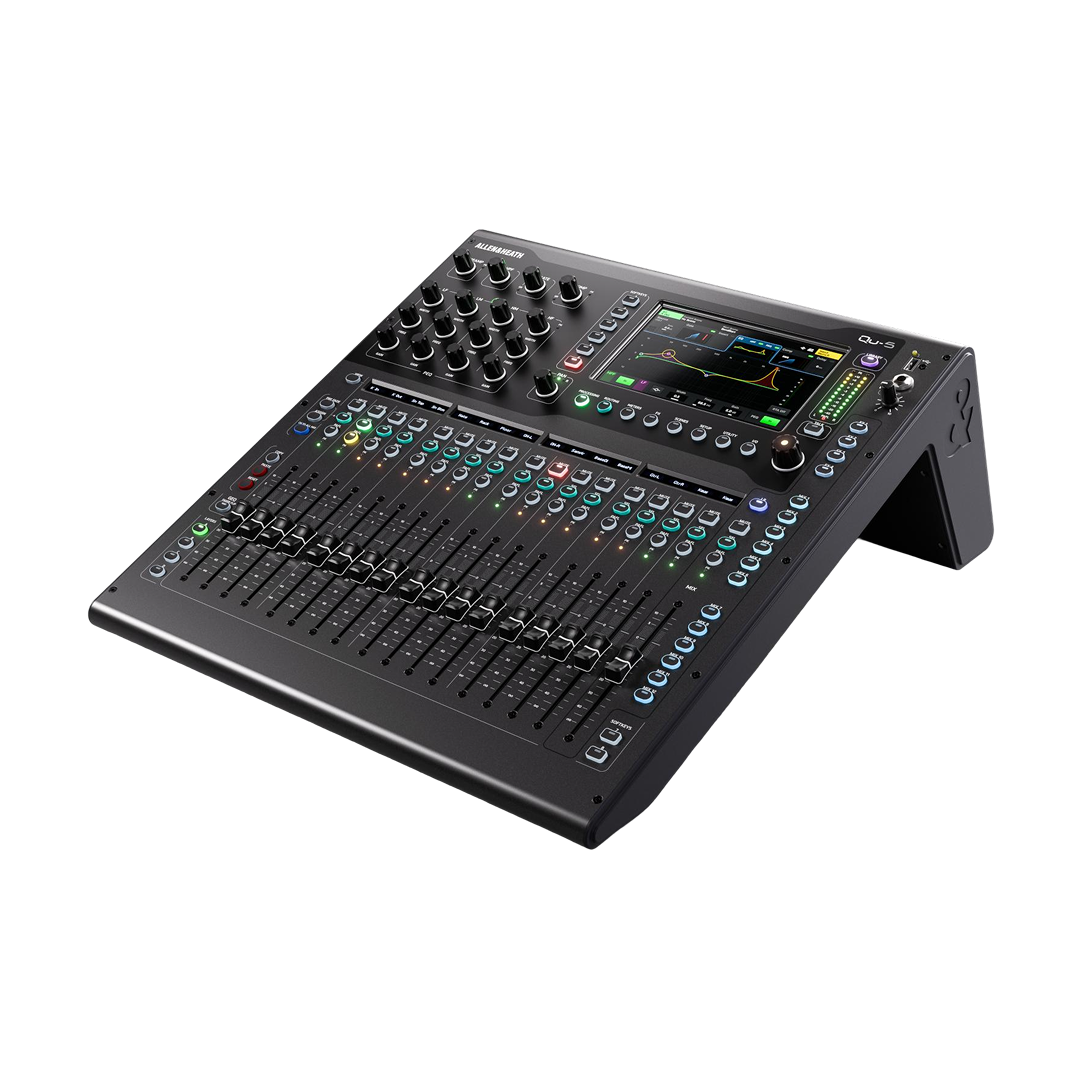

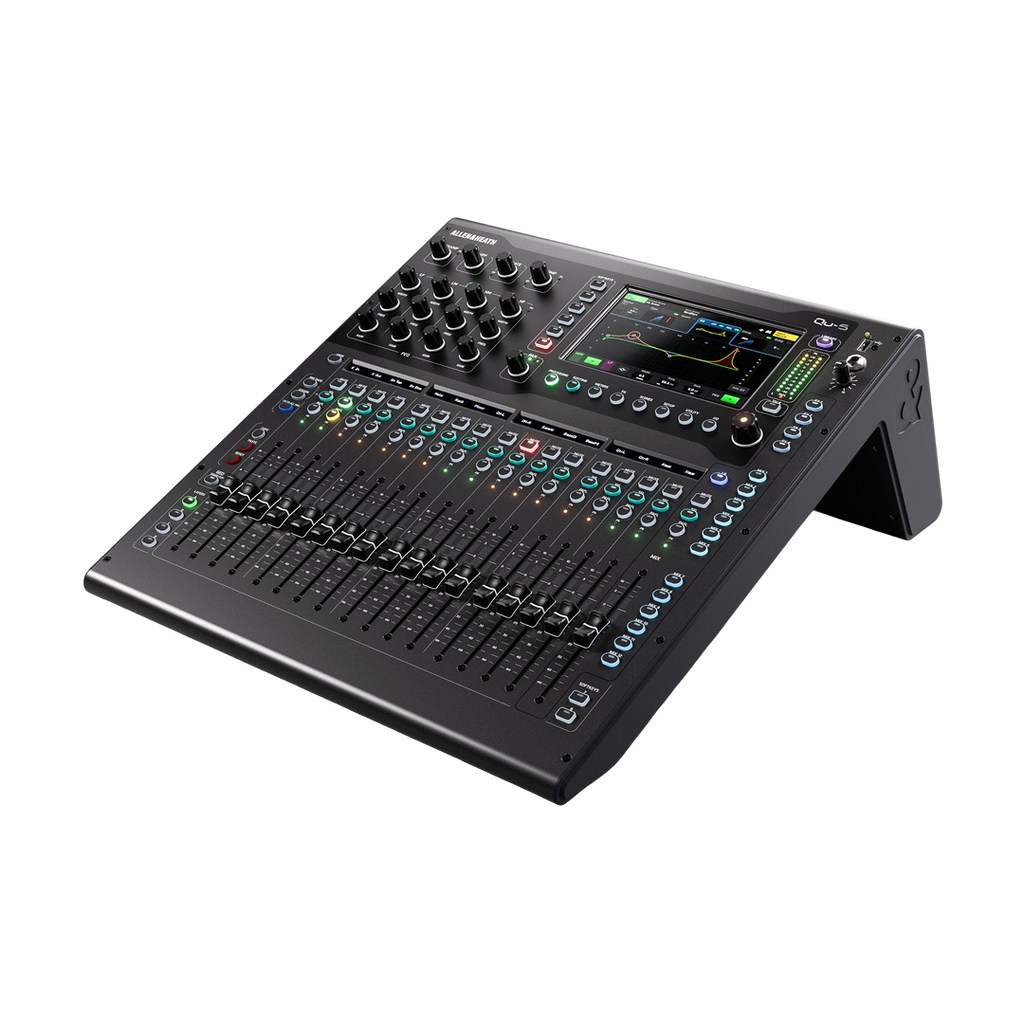

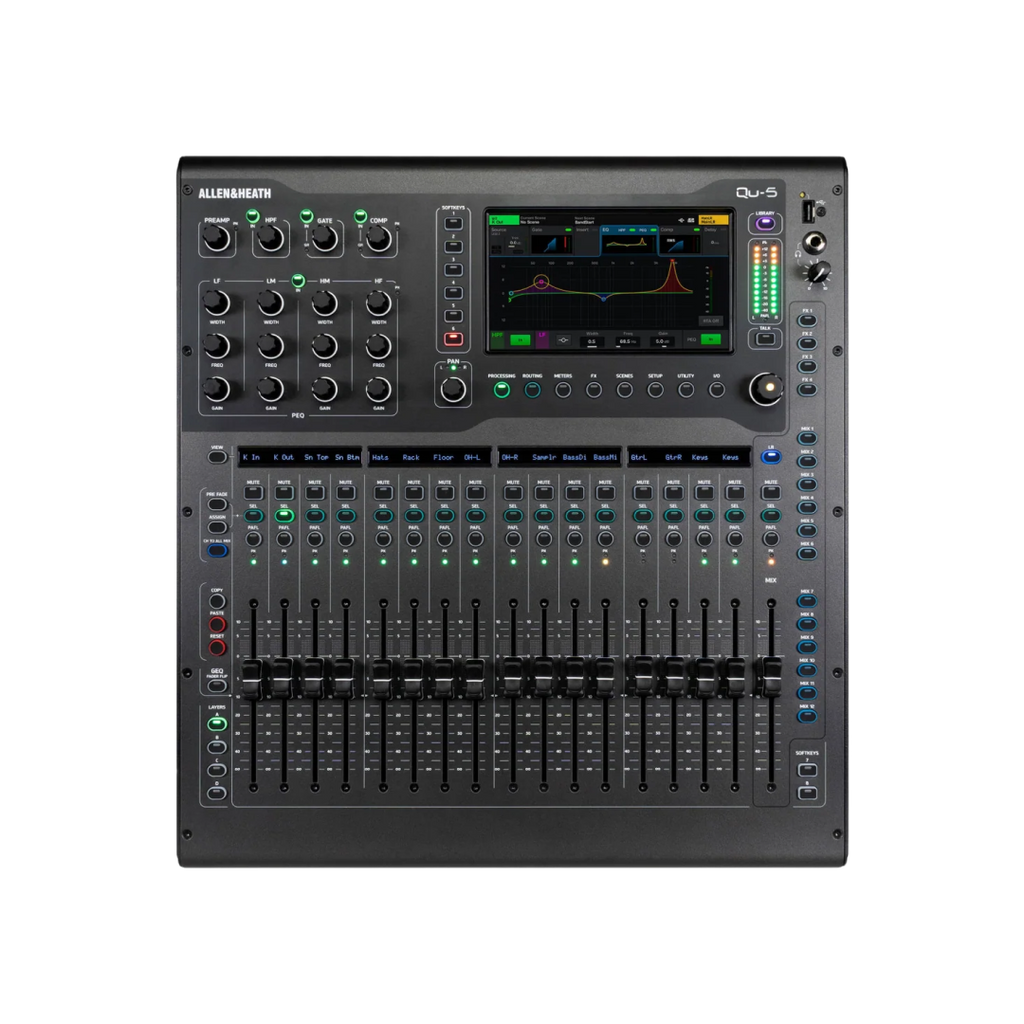

Allen & Heath Qu-5
Ražotājs: Allen & Heath
€1.939,00
Jautājumi?
Zvani / WhatsApp
+37120273545
Raksti uz
hello@defset.eu
The Allen & Heath Qu-5 is a professional 96kHz digital mixing console designed for live sound, houses of worship, theatres, corporate AV, broadcast, and recording applications. Powered by Allen & Heath's next-generation XCVI FPGA processing engine, the Qu-5 delivers 38-input mixing capacity, 17 motorised faders, advanced processing, multitrack recording, and seamless integration with the Everything I/O ecosystem. As the most compact model in the new Qu series, it combines intuitive operation with professional performance in a rack-mountable format.
Key features
- 38-input / 24-output digital mixer
- 96kHz XCVI FPGA processing engine
- 16 recallable XLR/TRS combo mic-line preamps
- 17 motorised 100mm faders
- 7" capacitive touchscreen
- 6 stereo FX engines with dedicated returns
- 32×32 USB-C audio interface
- 32-channel SD card multitrack recording and playback
- 128×128 SLink expansion port
- Automatic Microphone Mixer (AMM)
- Gain Assistant and Feedback Assistant
- DEEP Processing ready
- Remote control via Windows, macOS, iOS and Android apps
Overview
| Type | Digital Mixing Console |
| Mix Capacity | 38 Inputs to Mix (32 Mono/Linkable + 3 Stereo) |
| Mic Preamps | 16 Recallable Mic/Line Preamps |
| Processing Engine | 96kHz XCVI FPGA Core |
| Display | 7" Capacitive Touchscreen |
| Faders | 17 × 100mm Motorised Faders |
| Layers | 4 Customisable Channel Layers |
| Buses | 12 Mixes (6 Mono/Linkable Aux/Group + 6 Stereo Aux/Group) |
| Matrix Outputs | 4 Mono/Linkable Matrix Mixes |
| FX Engines | 6 Internal Stereo Multi-FX Engines |
| USB Interface | 32×32 USB-C Audio Interface |
| SD Recording | 16×16 @ 96kHz or 32×32 @ 48kHz |
| Expansion | 128×128 Intelligent SLink Port |

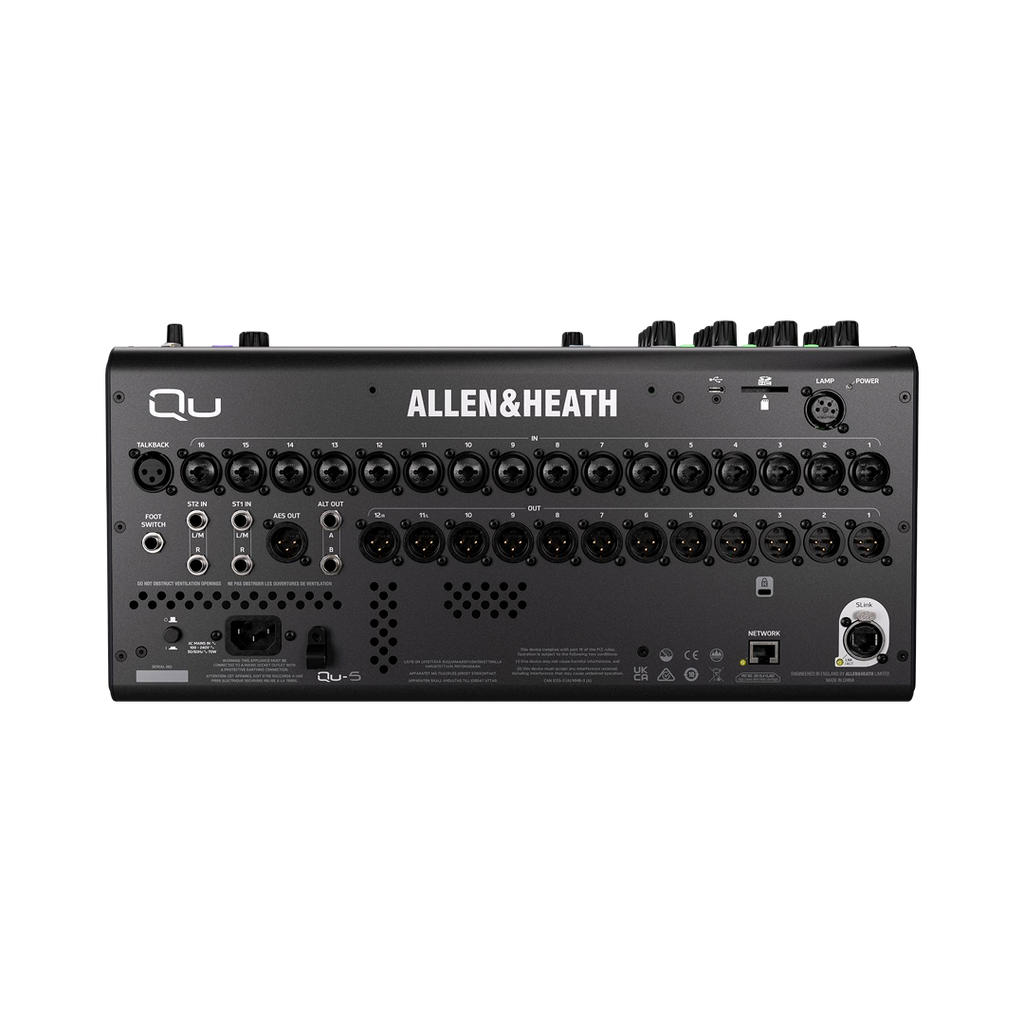

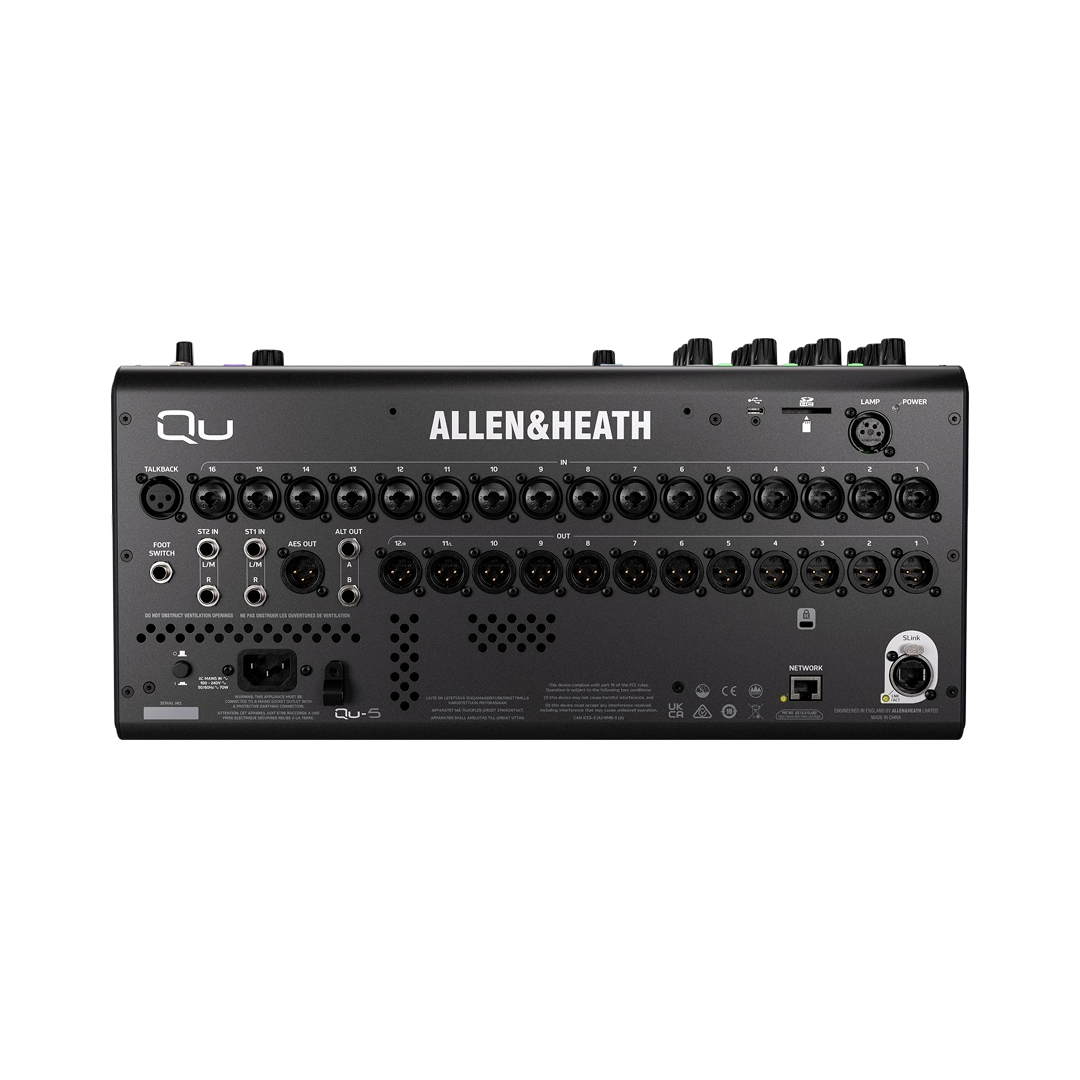

| Analogue Inputs | 16 XLR/TRS Combo Inputs + 2 Stereo Inputs + Talkback |
| Analogue Outputs | 12 XLR Outputs + 2 TRS Outputs |
| Digital Outputs | AES3 Stereo Digital Output |
| Networking | RJ45 Ethernet Control Port |
| SoftKeys | 8 User-Assignable SoftKeys |
| Dimensions | 440 × 476 × 211 mm |
| Weight | Approximately 10 kg |
Included Content
- Qu-5 digital mixer
- 32×32 USB-C audio interface
- SD card multitrack recording and playback system
- SLink expansion connectivity
- IEC power cable
- Qu-MixPad and Qu4You remote-control applications
Creative Tools
- Six stereo FX engines featuring reverb, delay, chorus, flanger and modulation effects
- 32-channel Automatic Microphone Mixer (AMM)
- Gain Assistant for automatic input gain optimisation
- Feedback Assistant with automatic feedback suppression
- DEEP Processing compatibility with premium Allen & Heath processing models
- 32×32 USB multitrack recording and DAW integration
- SD card multitrack recording without a computer
- Customisable channel layers and assignable SoftKeys
- SLink connectivity for Everything I/O stageboxes and personal monitoring systems
- Comprehensive dynamics, EQ and routing on every channel and mix bus
Ideal For
- Professional live sound engineers
- Portable production systems
- Houses of worship
- Theatres and performing arts venues
- Corporate AV and conference facilities
- Broadcast and streaming production
- Recording and rehearsal studios
- Rental companies and touring productions
- Users requiring professional digital mixing in a compact rack-mountable console
