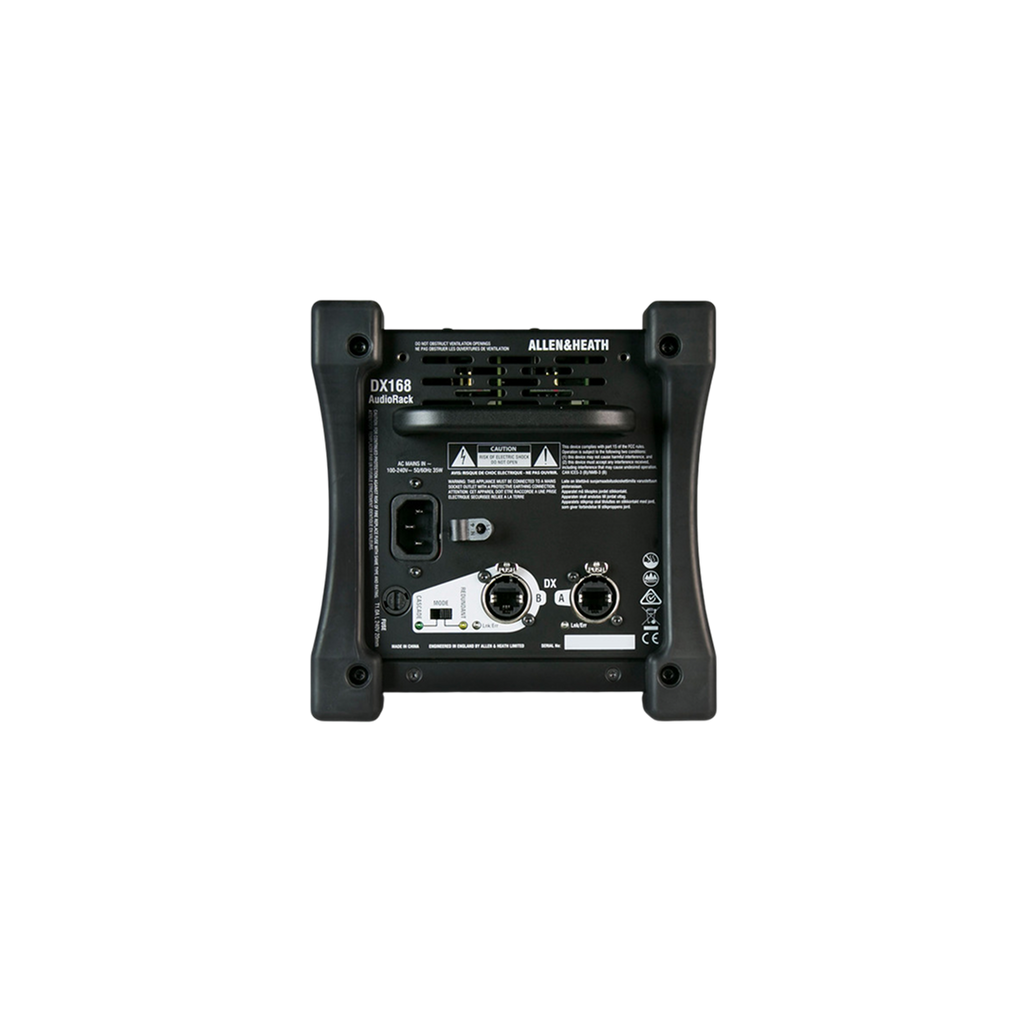

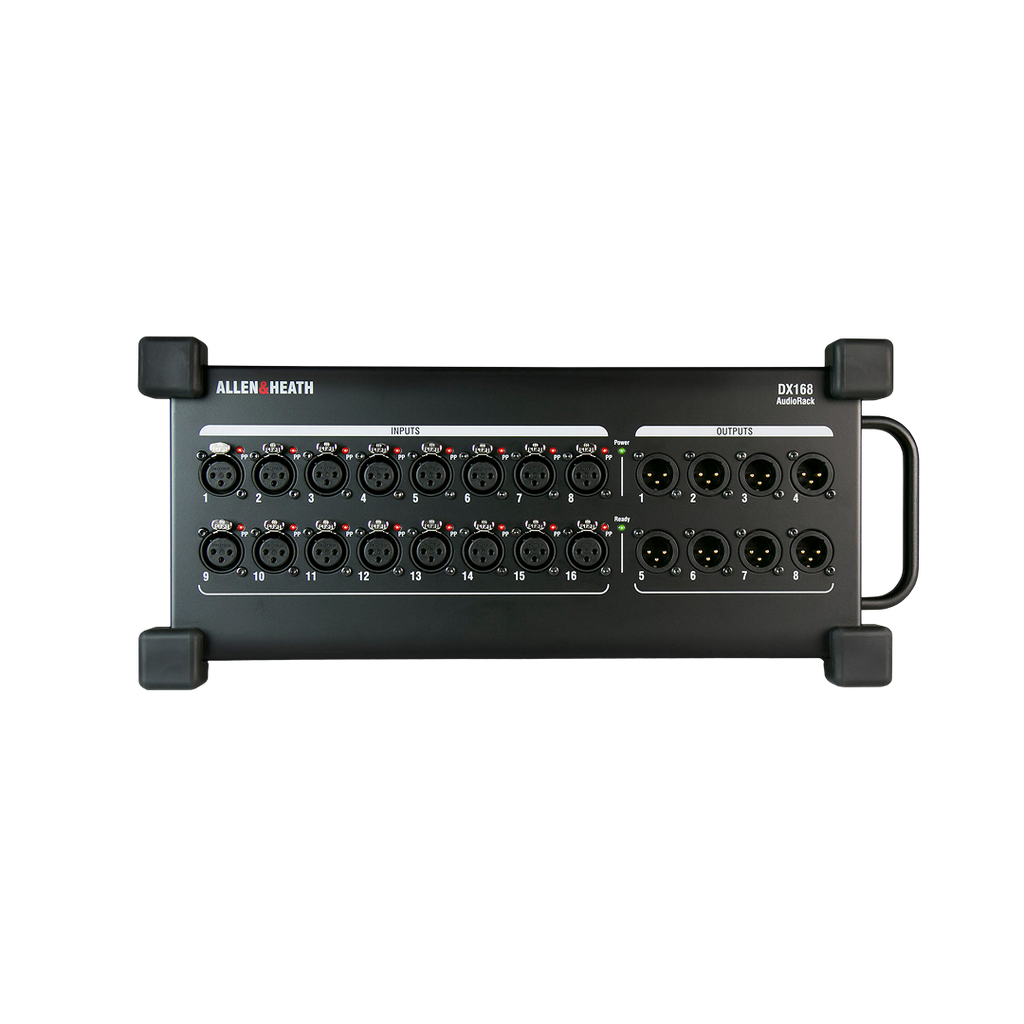

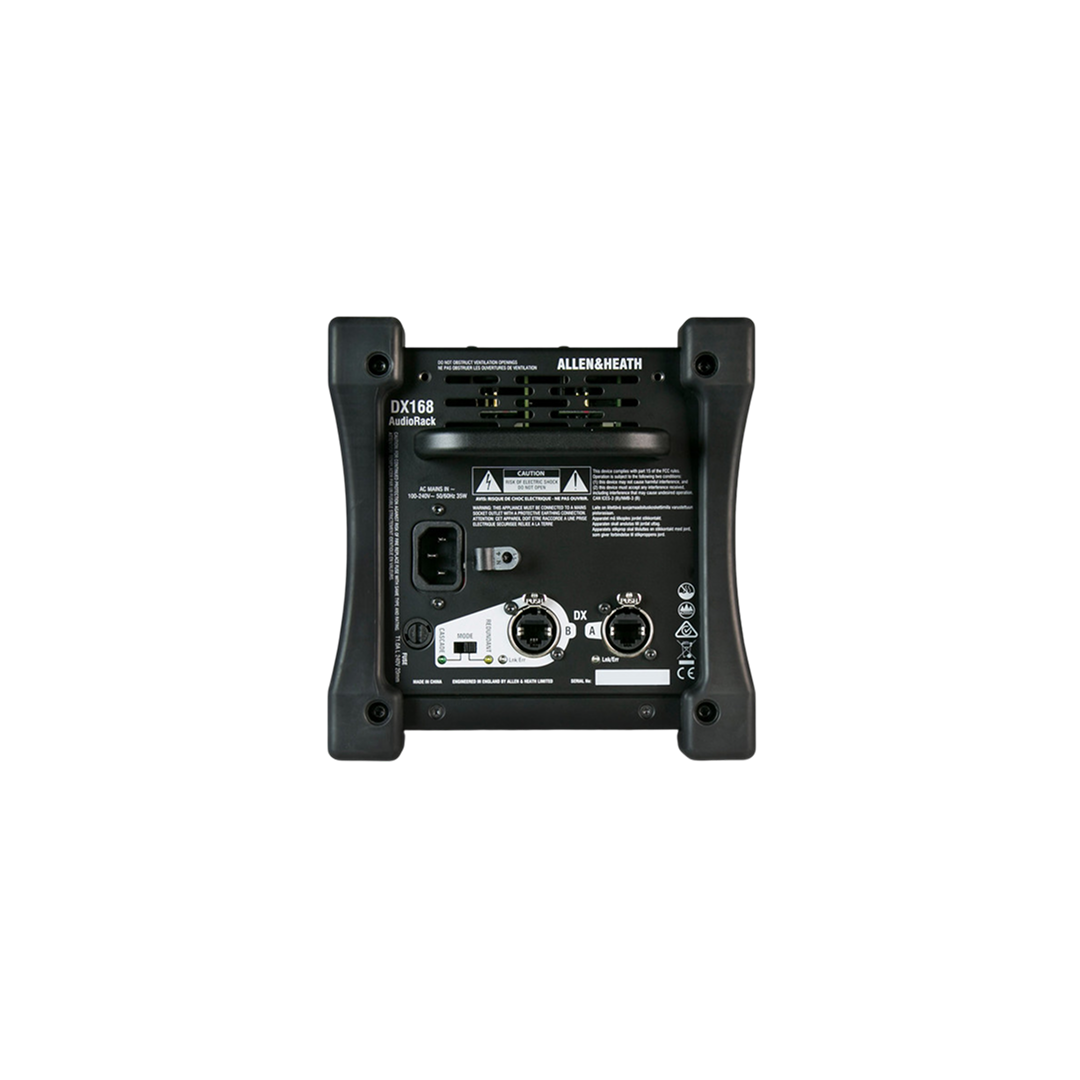

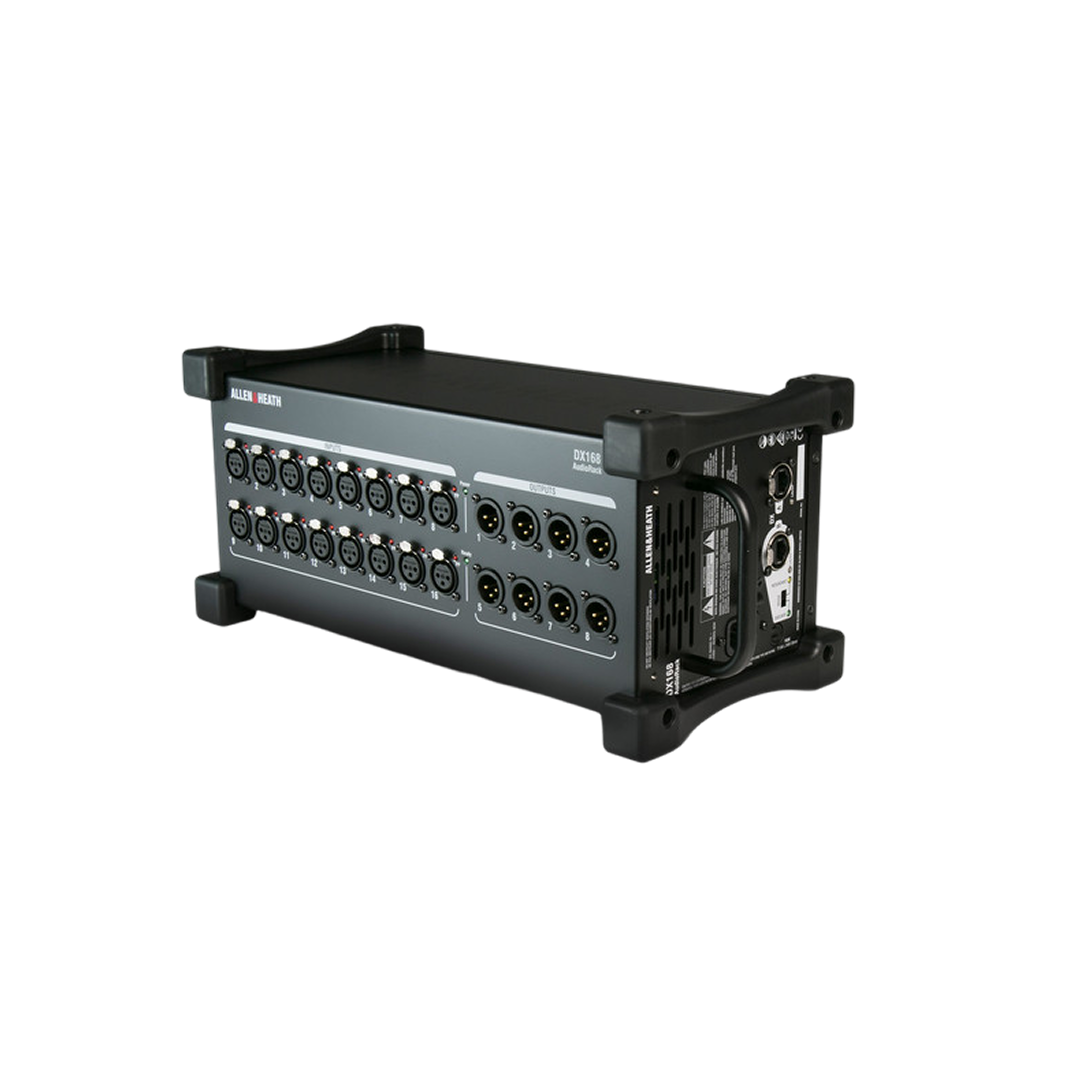

The Allen & Heath DX168 is a professional 96kHz portable remote stagebox designed for Allen & Heath SQ, Avantis, dLive and AHM systems. Featuring 16 remote-controlled microphone preamps and 8 balanced XLR outputs, the DX168 connects over a single Cat5e cable using Allen & Heath's DX protocol, delivering pristine 96kHz audio with ultra-low latency. Its rugged portable chassis, integrated carry handle, dual EtherCon ports and flexible mounting options make it ideal for touring, live sound, theatres, broadcast, corporate AV and permanent installations.

Key features

• 16 remote-controlled XLR mic/line inputs
• 8 balanced XLR line outputs
• 96kHz DX digital audio transport
• 16 fully recallable microphone preamps
• Dual locking EtherCon ports
• Daisy-chain or redundant connection support
• Up to 100m connection via Cat5e cable
• Independent phantom power indicators
• Portable stagebox with integrated carry handle
• Optional 19-inch rack-mount kit
• Compatible with SQ, Avantis, dLive and AHM systems

Overview

Included Content

• DX168 remote stagebox
• Integrated carry handle
• IEC power cable
• User documentation

Creative Tools

• 96kHz remote stage I/O over a single Cat5e cable
• Remote gain and phantom power control from compatible mixers
• Daisy-chain a second DX168 for expanded I/O
• Redundant network connection for mission-critical applications
• Compatible with DX Hub system expansion
• Portable deployment for touring and rental applications
• Optional rack mounting for permanent installations
• Eliminates bulky analogue multicore snakes
• Supports flexible stage layouts up to 100 metres from the console

Ideal For

• Professional live sound reinforcement
• Touring productions
• Broadcast facilities
• Corporate AV systems
• Houses of worship
• Theatres and performing arts venues
• Rental and production companies
• Permanent installations
• Users of Allen & Heath SQ, Avantis, dLive and AHM systems
