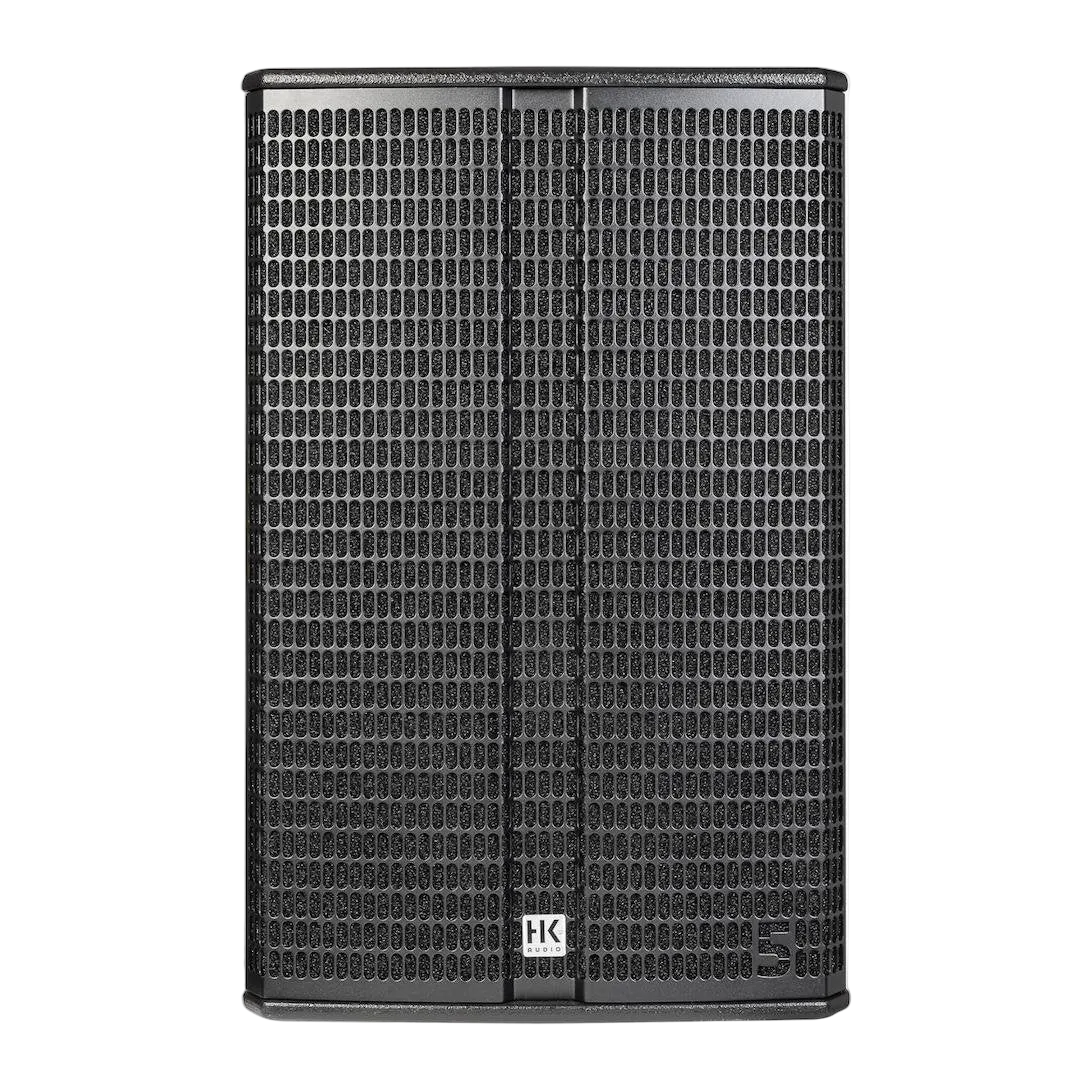

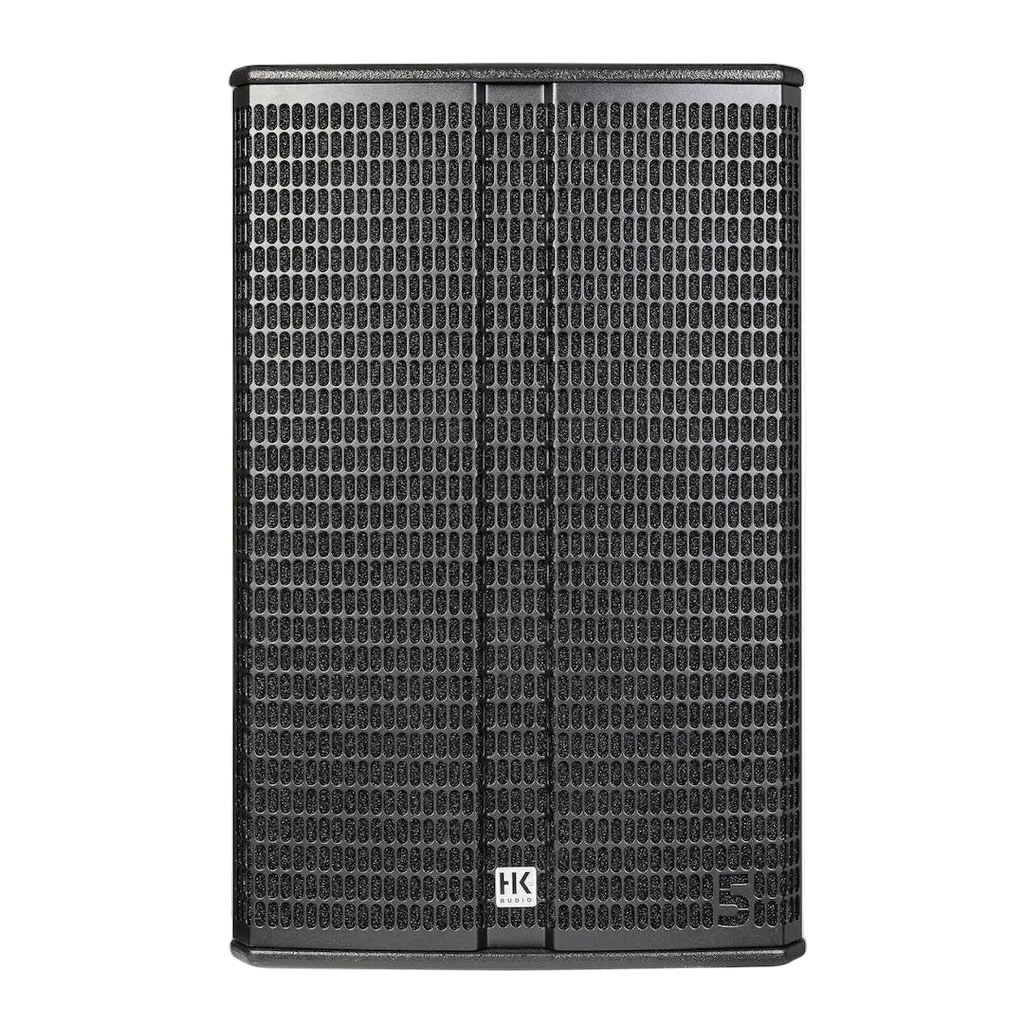

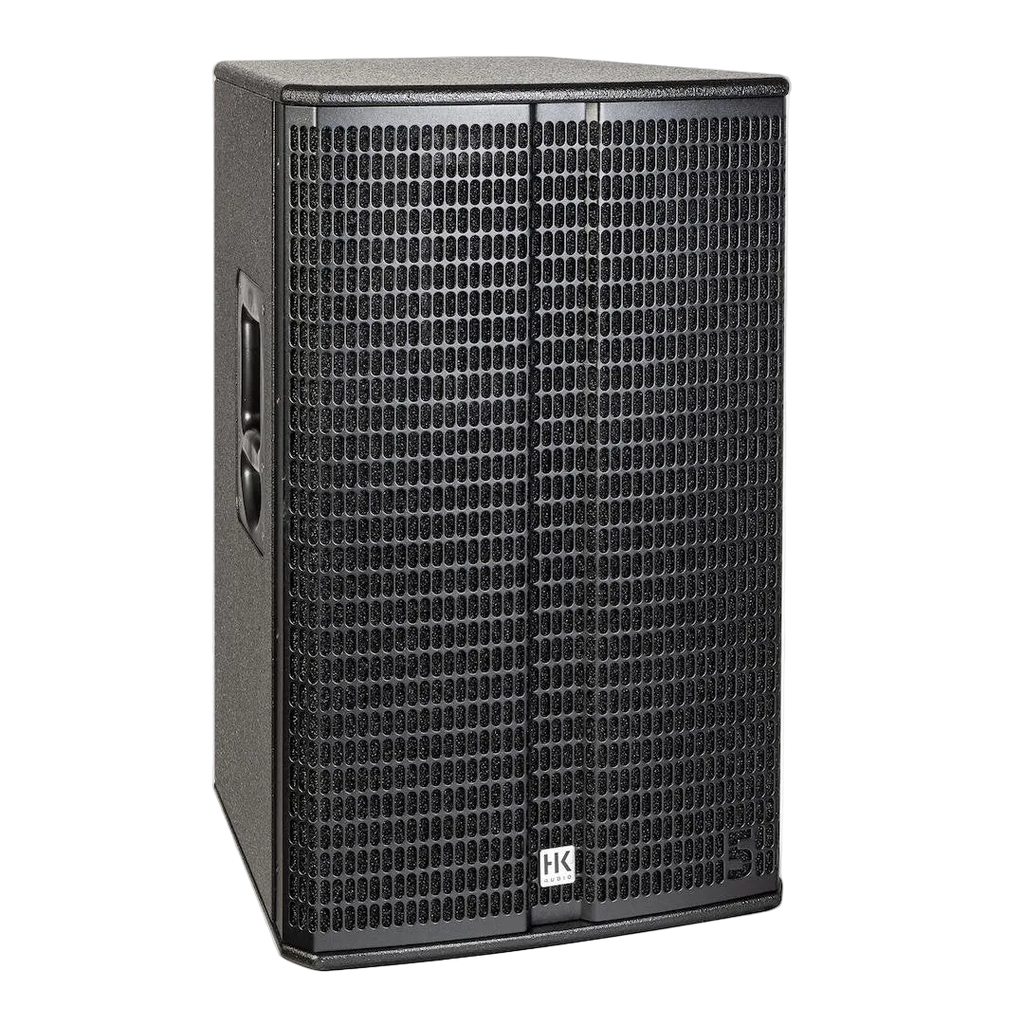

HK Audio LINEAR 5 MKII 115 FA
By HK Audio
€1.399,00
The LINEAR 5 MK2 115 FA is a high‑performance full‑range active loudspeaker built for professional live sound applications where power, clarity, and long‑throw projection are essential. Its 15‑inch woofer delivers strong, controlled low‑end response, while the extended horn design ensures excellent reach and definition, even in larger venues. With a rugged birch plywood/MDF cabinet, rotatable horn, and advanced DSP processing, it is engineered for reliability in touring, rental, and fixed‑installation environments.
Key features
| System type | Active 2‑way loudspeaker |
| Amplifier power | 1200 W Class‑D |
| Drivers | 15" LF + 1" HF (1.75" voice coil) |
| Max SPL | 137 dB peak |
| Frequency range | 58 Hz – 18 kHz (‑6 dB) |
| Dispersion | 70° × 50° rotatable horn |
| DSP functions | 10‑band EQ, HPF/LPF, polarity, delay, limiter, mute |

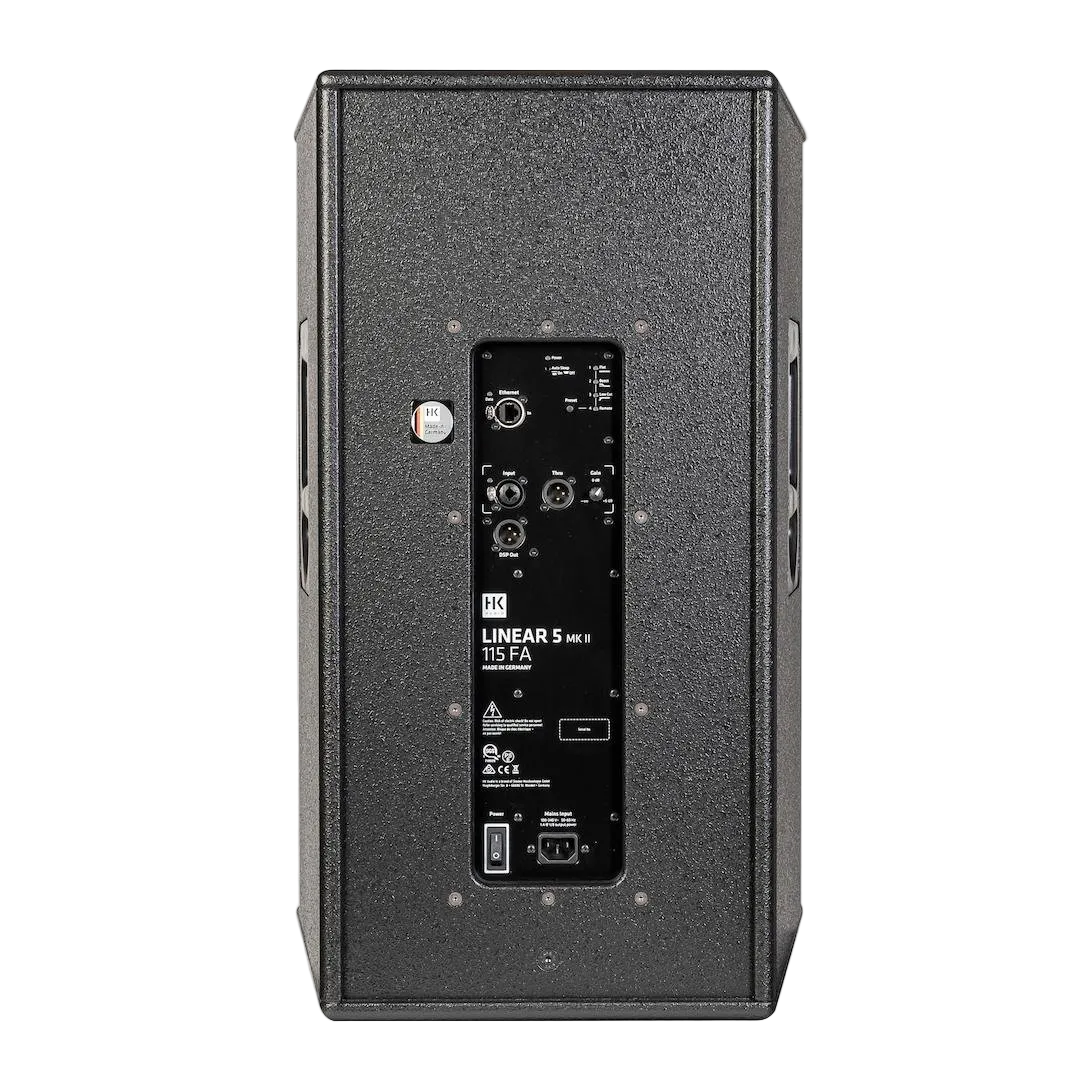

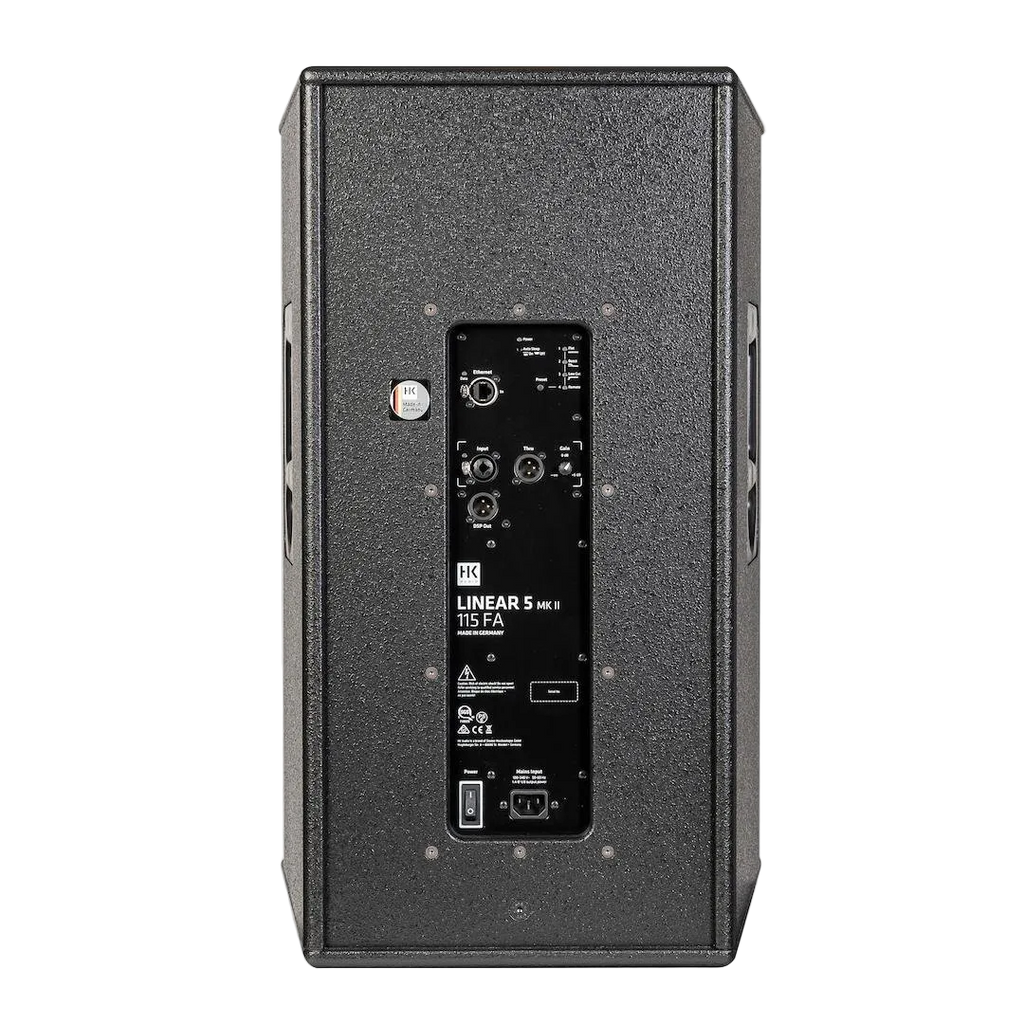

| Inputs/Outputs | XLR/jack combo, XLR thru, XLR DSP out, Ethernet |
| Cabinet construction | Birch plywood/MDF with steel grille |
| Mounting options | DuoTilt 3°/7°, 3× M8 rigging points |
| Dimensions (W×H×D) | 450 × 685 × 420 mm |
| Weight | 26.6 kg |
Overview
The LINEAR 5 MK2 115 FA is designed for situations requiring both high output and wide coverage, making it suitable for live bands, DJs, rental companies, and medium‑to‑large venues. Its long‑throw horn ensures excellent projection, while the 15‑inch woofer provides substantial low‑frequency performance even without a subwoofer. When paired with LINEAR 5 MK2 subwoofers, a dedicated preset optimizes crossover behavior for a powerful, cohesive system. The rotatable horn supports horizontal placement and cluster configurations, and the integrated DSP allows precise tuning for any acoustic environment.
Included Accessories
- Power cable
- User documentation
Included Software
- Built‑in DSP with presets and 10‑band parametric EQ
- Network‑enabled remote control functions (via internal DSP)
