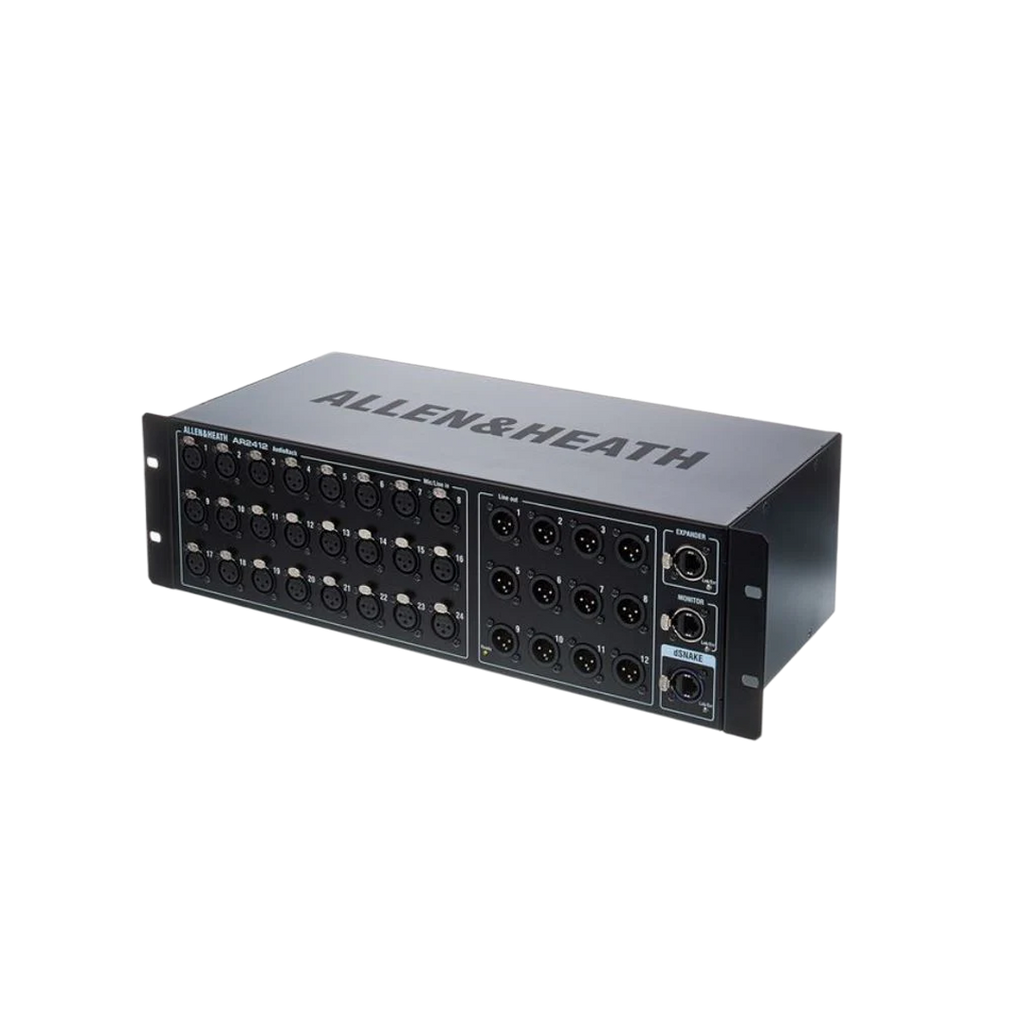

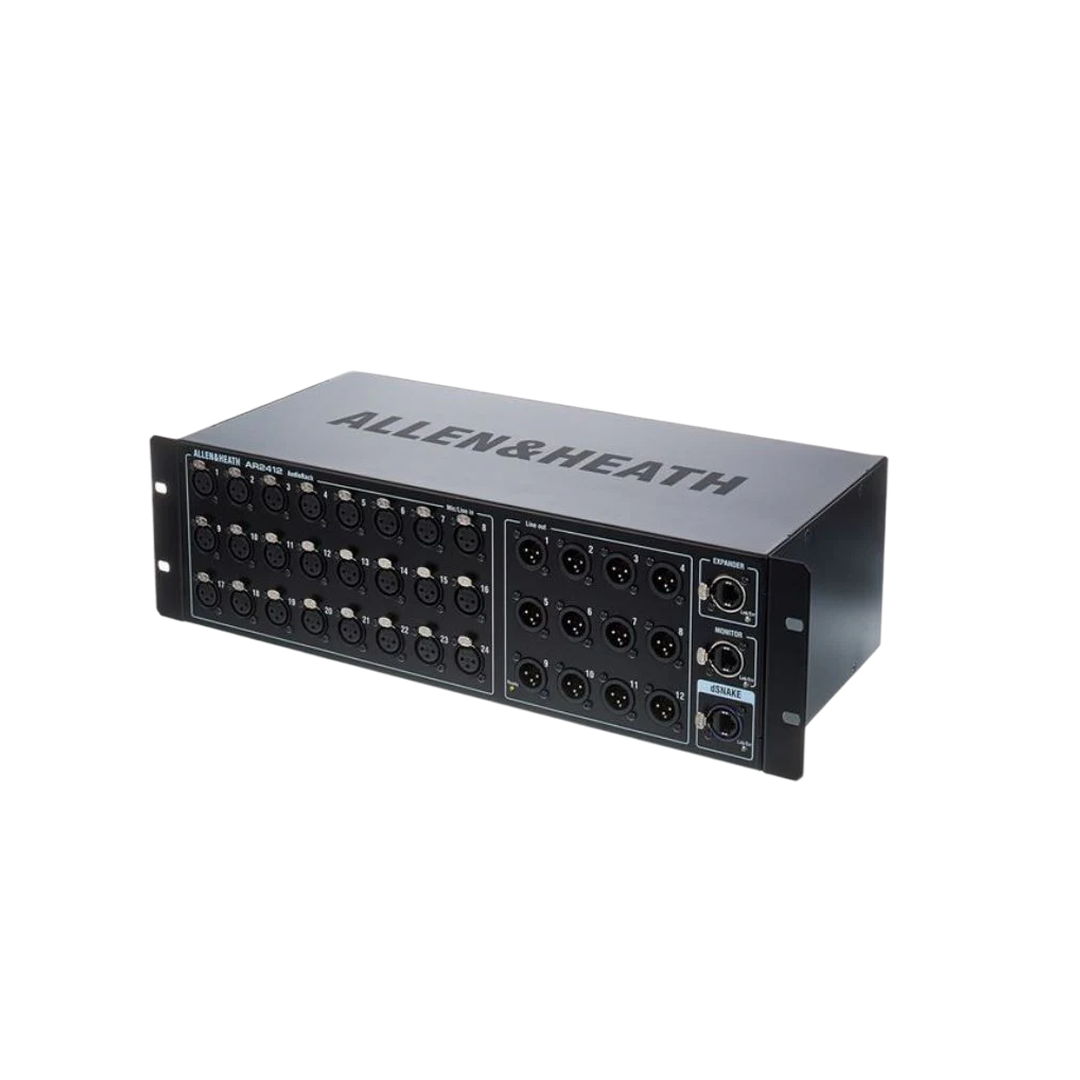

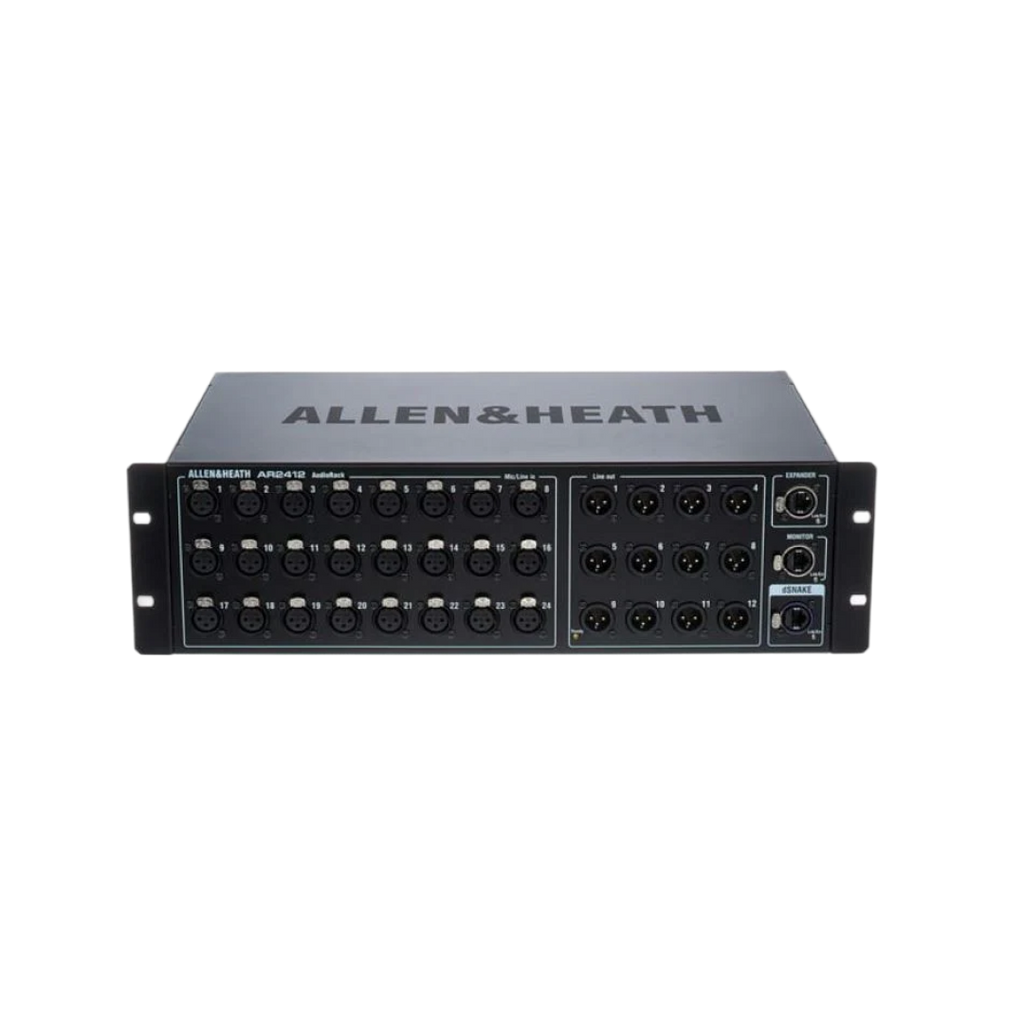

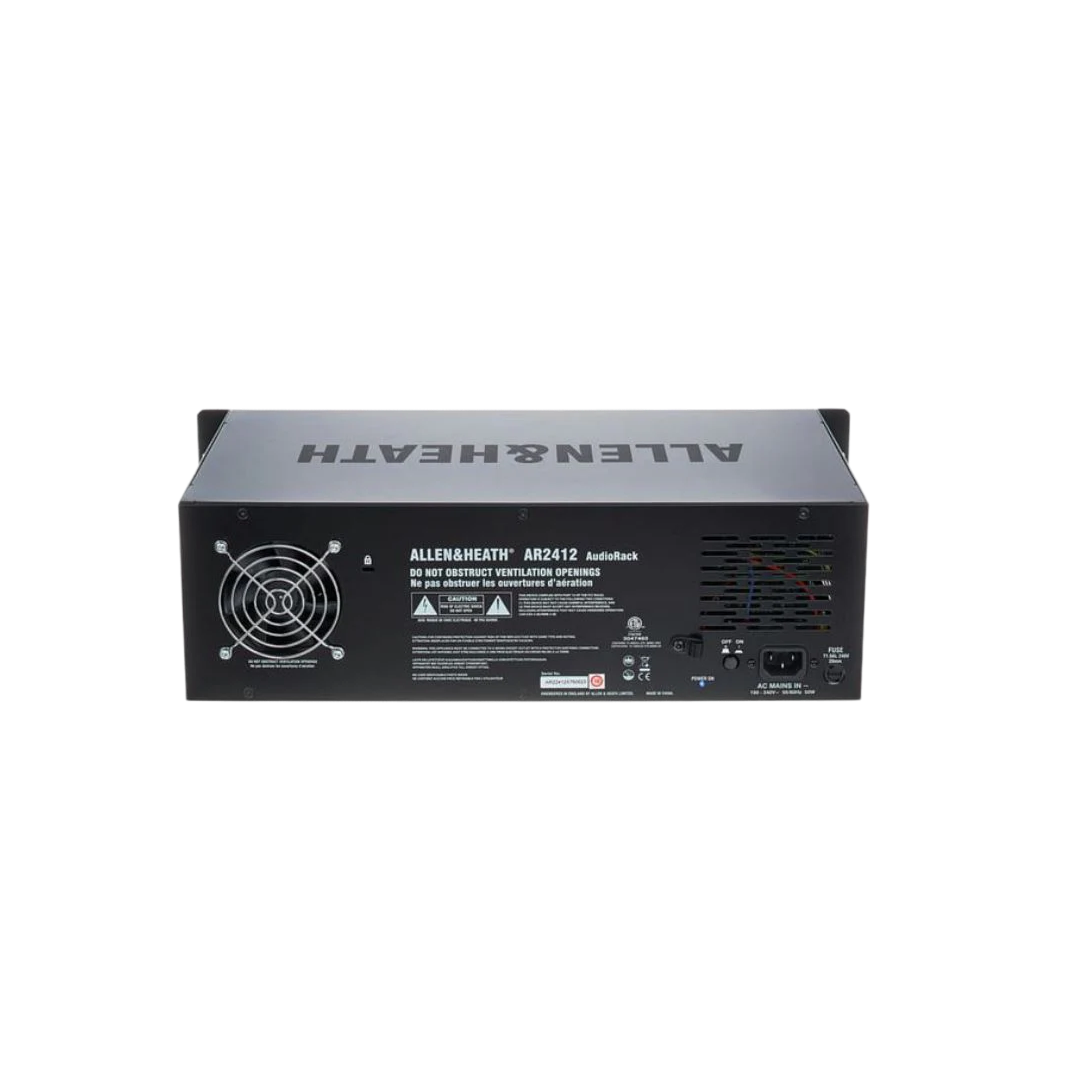

The Allen & Heath AR2412 is a professional remote AudioRack stagebox designed to expand the input and output capacity of Allen & Heath digital mixing systems. Featuring 24 remote-controlled microphone preamps and 12 XLR outputs, the AR2412 connects to compatible mixers over a single Cat5e cable using Allen & Heath's dSNAKE protocol, allowing I/O to be positioned up to 100 metres from the console. It is widely used in live sound, houses of worship, theatres, touring productions, and fixed installations where stage-side connectivity is required.

Key features

• 24 remote-controlled XLR mic/line inputs
• 12 balanced XLR line outputs
• dSNAKE digital audio transport over Cat5e
• Up to 100m remote placement from mixer
• Fully recallable microphone preamps
• Dedicated Expander port for AR84 or AB168
• Dedicated Monitor port for ME Personal Mixing System
• Automatic firmware synchronization with compatible mixers
• Locking EtherCon network connections
• 3U rack-mount chassis
• Compatible with Qu, SQ, Avantis and AHM systems

Overview

Included Content

• AR2412 AudioRack stagebox
• Integrated rack-mount ears
• IEC power cable
• User documentation

Creative Tools

• Remote stagebox deployment for live productions
• Single-cable Cat5e installation between stage and FOH
• Recallable preamp gain with scene automation
• Expandable I/O using AR84 or AB168 AudioRacks
• Personal monitoring integration through ME systems
• Ideal for permanent installations and touring systems
• Automatic firmware updates from connected consoles
• Reduces analogue multicore cabling requirements
• Supports distributed stage layouts and remote patching

Ideal For

• Live sound reinforcement systems
• Houses of worship
• Theatres and performing arts venues
• Corporate AV installations
• Touring productions
• Broadcast and streaming facilities
• Schools and universities
• Users of Allen & Heath Qu, SQ and Avantis mixers
• Installations requiring remote I/O expansion
