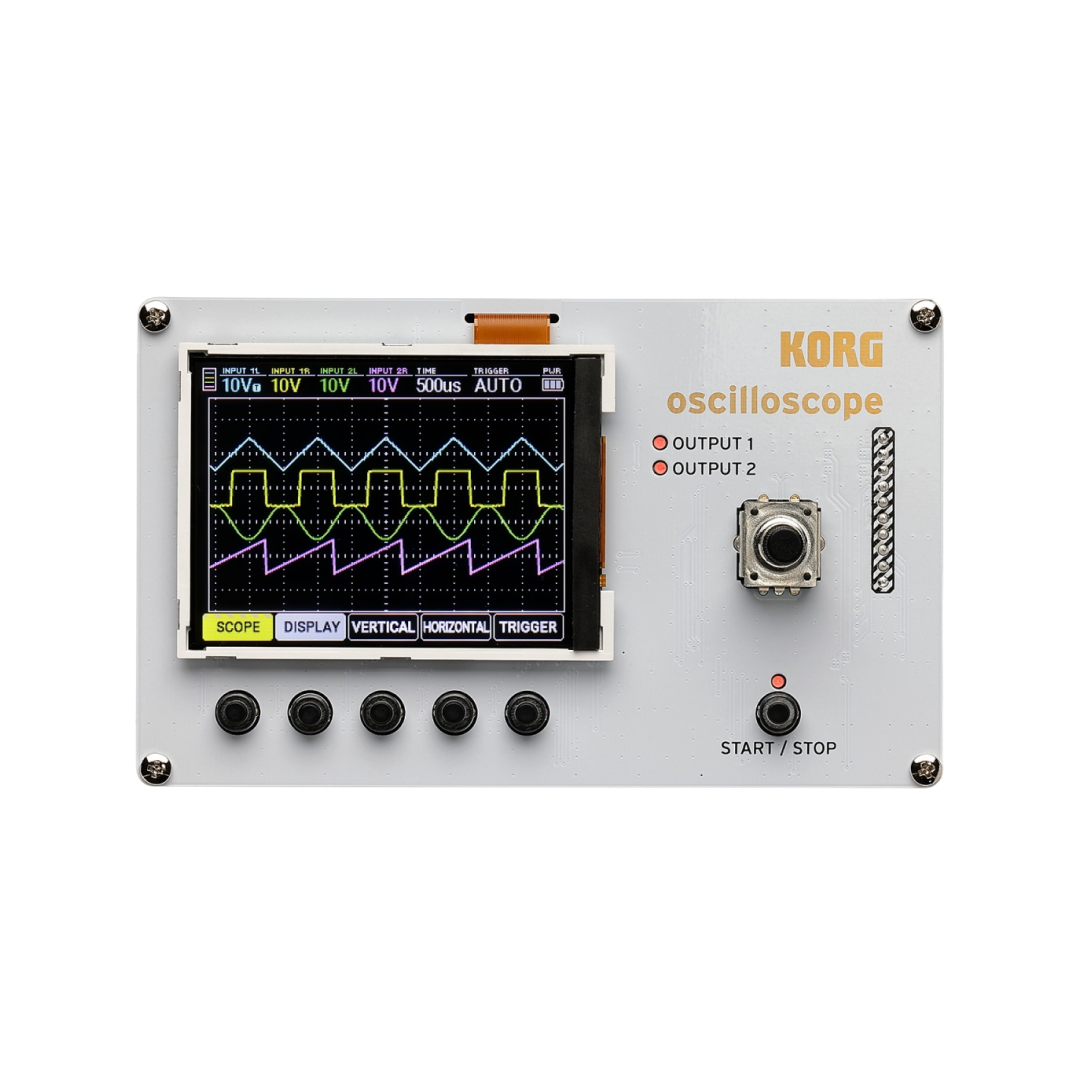

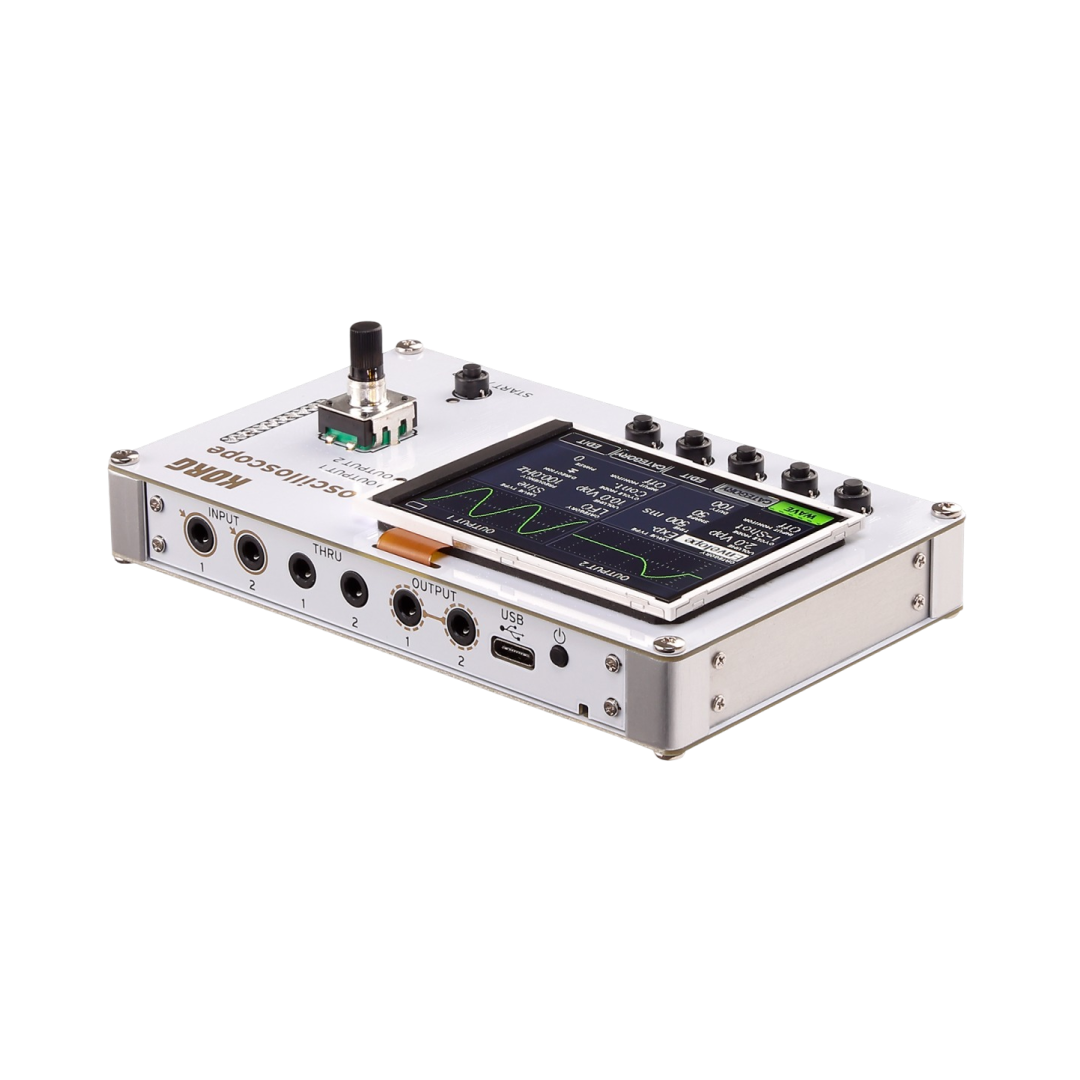

The KORG NTS-2 is a compact multifunction oscilloscope kit designed for synthesizer enthusiasts, modular users and electronic musicians. Developed in collaboration with the creators of the PATCH & TWEAK series, the NTS-2 combines a four-channel oscilloscope, FFT spectrum analyser, dual function generator and precision tuner in a portable, battery-powered device. Whether you're analysing waveforms, troubleshooting modular patches, calibrating oscillators or visualising CV signals, the NTS-2 is an indispensable utility for studio and live performance setups.
Key features
- Portable multifunction oscilloscope for synthesizers and modular systems
- Four-channel oscilloscope with multiple display modes
- Built-in FFT spectrum analyser
- Dual-channel function generator
- Precision tuner with adjustable reference pitch
- 2.8-inch full-colour RGB LCD display
- Compatible with Eurorack, semi-modular and desktop synthesizers
- USB-C or battery-powered operation
- Compact DIY assembly kit with no soldering required
- Designed alongside the PATCH & TWEAK educational ecosystem
Overview
| Product Type | Multifunction Oscilloscope Kit |
| Display | 2.8" RGB LCD |
| Oscilloscope | 4-Channel with Single, Stereo and XY Modes |
| Spectrum Analyser | FFT (0 Hz – 20 kHz) |
| Function Generator | 2 Outputs, Sine, Square, Triangle, Saw, Noise, Pulse and Envelope |
| Tuner | Needle and Meter Modes, A4 = 410–480 Hz |
| Inputs | 2 × Stereo 3.5 mm TRS (±10 V Max) |
| Through Outputs | 2 × Stereo 3.5 mm TRS |
| Signal Outputs | 2 × Mono 3.5 mm TS (±5 V Max) |
| Power | USB-C Bus Power or 2 × AAA Batteries |
| Dimensions | 129 × 78 × 39 mm |
| Weight | 130 g (without batteries) |
Included Content
- KORG NTS-2 kit
- USB-C cable
- Assembly instructions
Creative Tools
- Visualise audio and CV signals with a responsive four-channel oscilloscope
- Analyse frequency content using the integrated FFT spectrum analyser
- Generate test signals including sine, square, triangle, saw, pulse, envelope and noise waveforms
- Accurately tune analogue and digital synthesizers with the built-in precision tuner
- Monitor multiple modulation sources simultaneously using four-channel display modes
- Use XY mode to explore Lissajous patterns and signal relationships
- Perfect for modular synthesis, Eurorack systems, desktop synths and electronic music education
Ideal For
- Modular synthesizer users
- Eurorack enthusiasts
- Electronic music producers
- Sound designers
- Synth builders
- Studio technicians
- Educational environments
- Anyone wanting to visualise and analyse audio or CV signals
