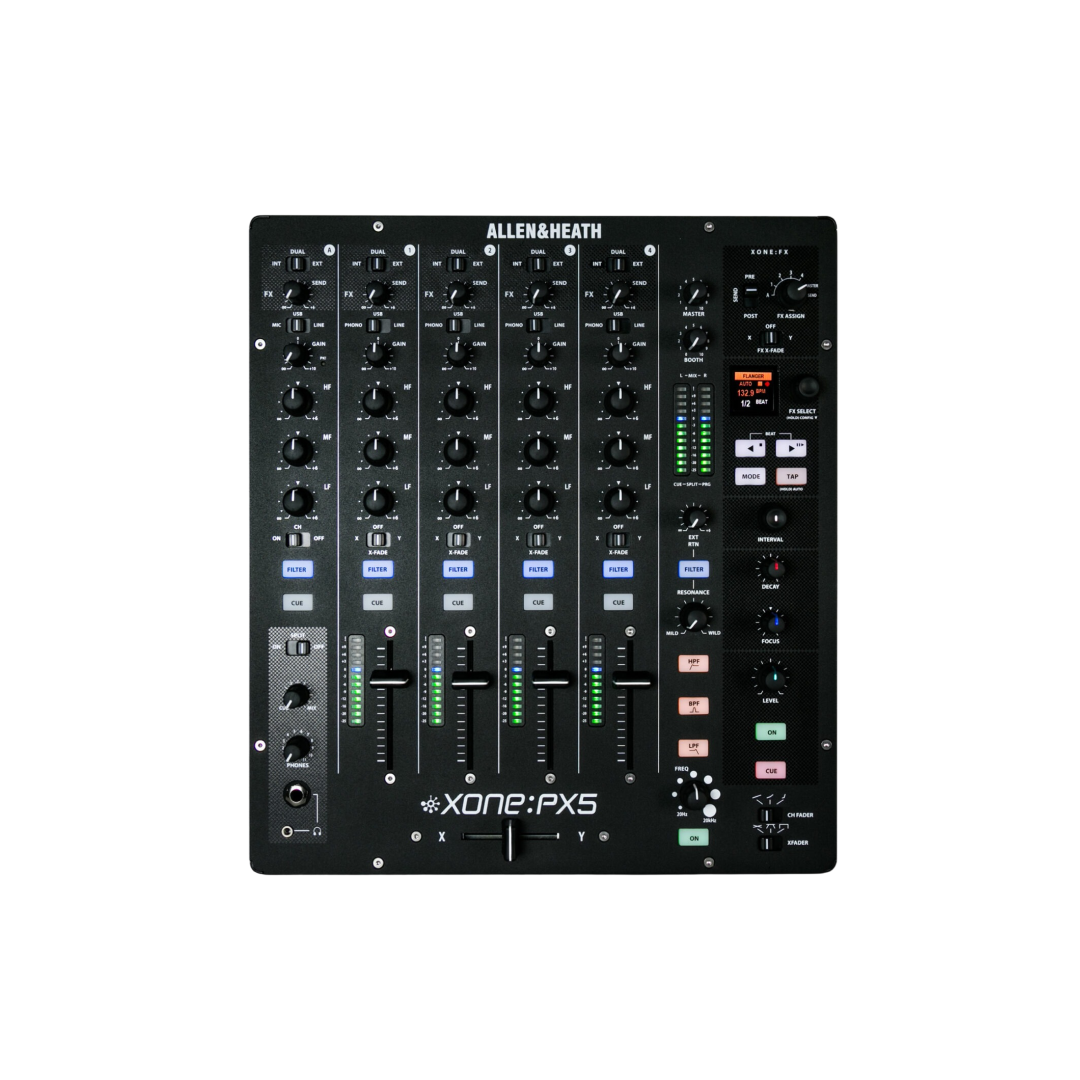

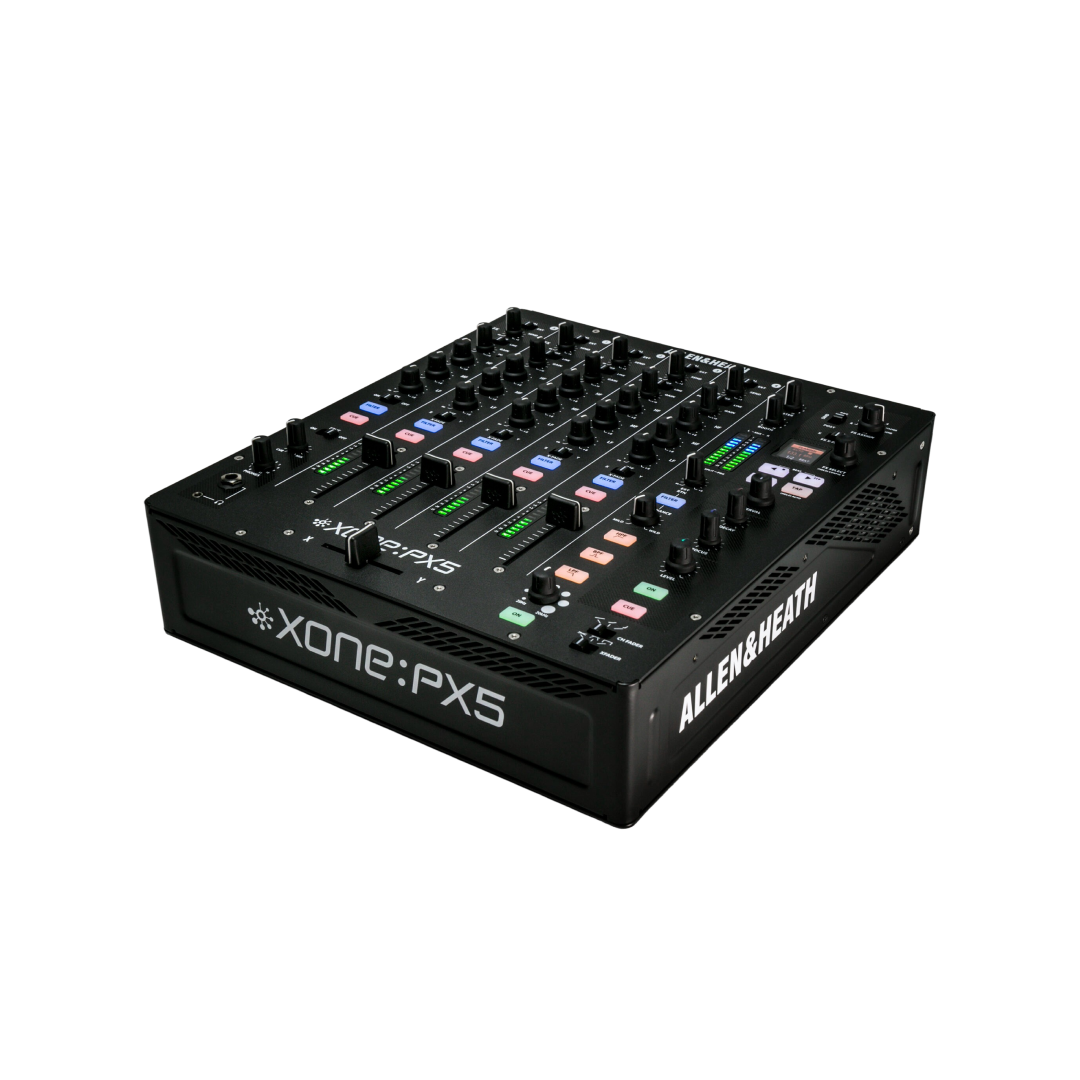

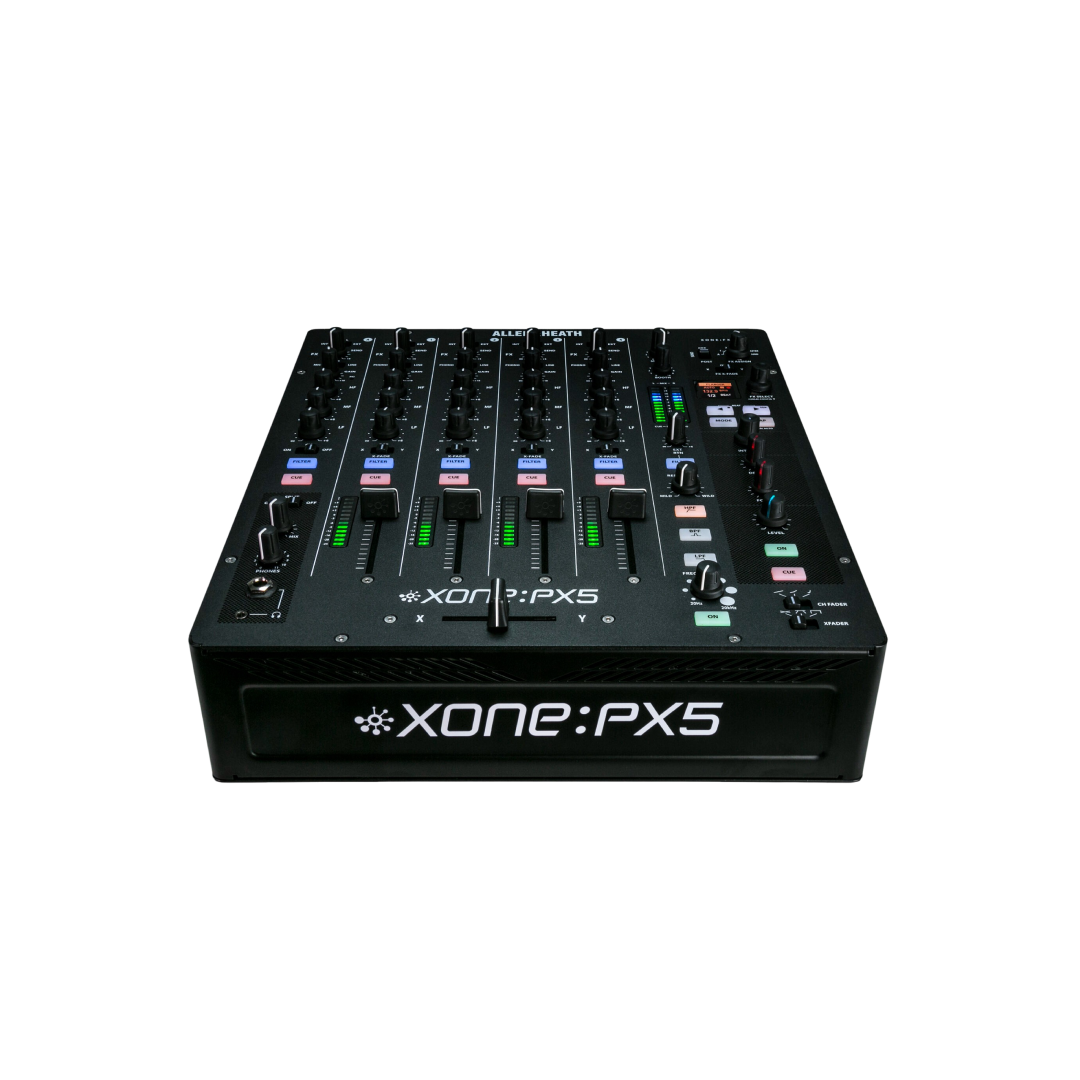

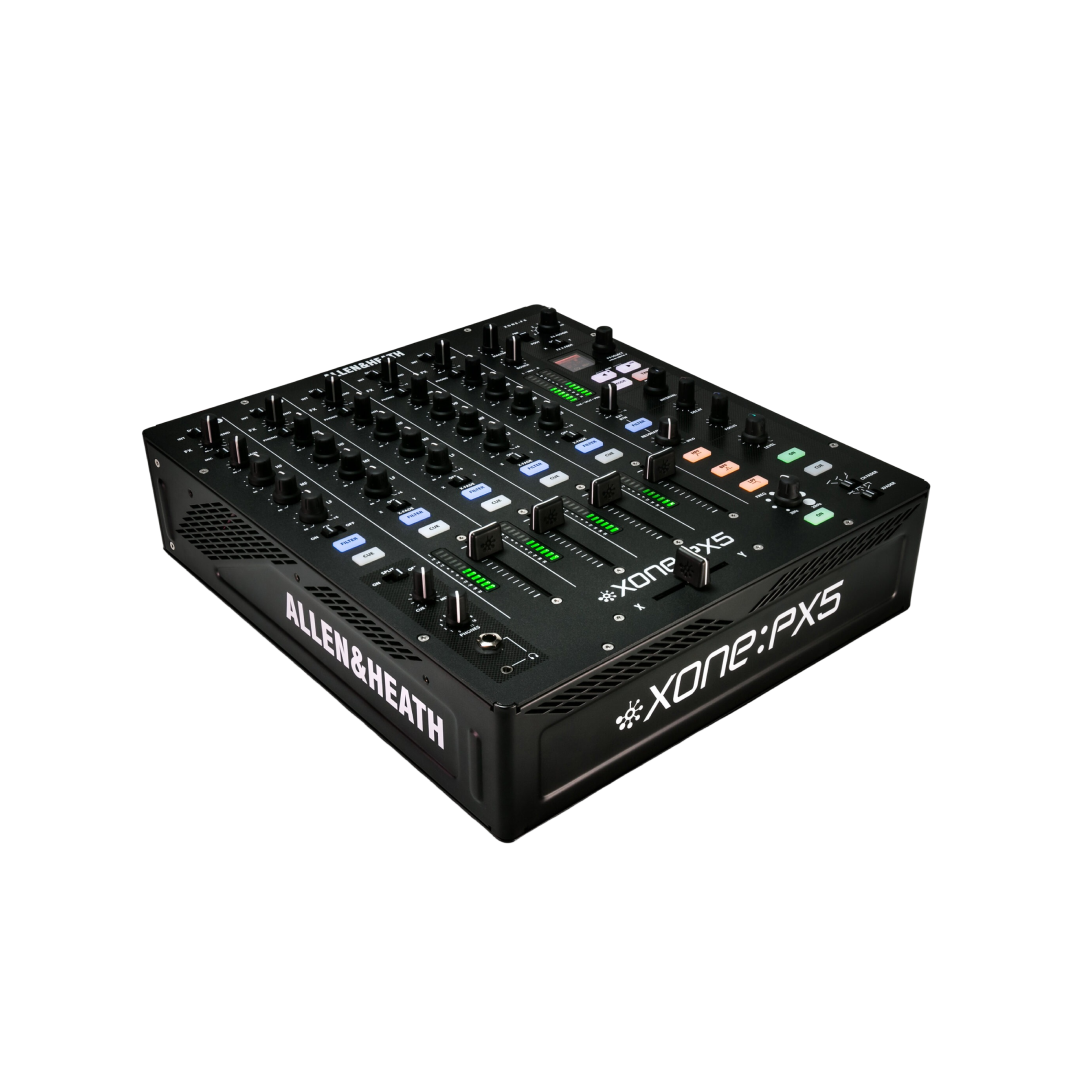

Allen & Heath Xone:PX5 is a professional 4+1-channel analogue DJ mixer combining the signature Xone sound with an integrated 20-channel, 24-bit / 96 kHz USB audio interface and an extensive digital effects engine. Four main channels accept phono, line and USB sources, while the additional microphone/auxiliary channel supports microphones, stereo line sources and USB returns. The Xone:VCF filter, Xone:Xcite effects, flexible external effects routing, MIDI synchronisation and X:Link connectivity make the Xone:PX5 a versatile centrepiece for analogue, digital and hybrid DJ performances.

Key features

• Professional 4+1-channel analogue DJ mixer
• Four phono, line and USB input channels
• Additional microphone, auxiliary and USB return channel
• Three-band total-kill EQ on every channel
• Classic analogue Xone:VCF filter
• Selectable high-pass, band-pass and low-pass filter modes
• Adjustable filter frequency and resonance
• Integrated Xone:Xcite digital effects engine
• Performance effects including delays, reverbs, modulators, flangers and distortions
• Internal, external and dual effects-routing modes
• Dedicated effects send control on every channel
• External effects send/return and master insert connections
• 20-channel, 10-in / 10-out USB audio interface
• 24-bit / 96 kHz USB audio resolution
• DVS support for Native Instruments Traktor Scratch Pro 3
• MIDI clock transmission and reception over USB
• Five-pin MIDI Sync/Out connection for external equipment
• X:Link connection for Xone:K-series controllers
• Replaceable 60 mm VCA channel faders
• Replaceable 45 mm VCA crossfader
• Compatible with the optional innoFADER Pro2
• Dual headphone outputs with split-cue monitoring

Overview

Included Content

• Allen & Heath Xone:PX5 DJ mixer
• AC power cable
• Spare knobs and buttons
• Safety information sheet

Creative Tools

• Mix up to four turntables, media players or computer playback decks through the four main channels, with independent phono, line and USB source selection.
• Use the additional Channel A for a microphone, stereo synthesizer, drum machine, auxiliary player or fifth USB return.
• Shape each source with three-band total-kill EQ, allowing complete removal of low, middle or high-frequency bands for transitions and layered mixes.
• Route selected channels through the analogue Xone:VCF and combine high-pass, band-pass or low-pass operation with adjustable frequency and resonance.
• Apply delays, reverbs, modulation, flanging and distortion from the integrated Xone:Xcite effects engine without carrying an external effects processor.
• Combine internal and external processing through Dual effects mode, sending a channel to the Xone:Xcite engine and connected effects hardware simultaneously.
• Connect guitar pedals, desktop effects and professional processors through the configurable send/return connections, with line and high-impedance return options.
• Insert a compressor, limiter, equaliser or other stereo processor across the complete master mix through the dedicated master insert connection.
• Use the integrated 10-in / 10-out USB interface for multichannel DJ software playback, recording, DVS operation and routing audio between the mixer and a computer.
• Synchronise drum machines, synthesizers and sequencers to the performance using USB MIDI clock or the dedicated five-pin MIDI Sync/Out connection.
• Connect a compatible Xone:K-series controller through X:Link for additional software control while preserving USB ports on the computer.
• Adjust the channel-fader and crossfader curves for smooth blending, fast cutting or scratch performance, with optional innoFADER Pro2 compatibility.
• Monitor through 6.35 mm or 3.5 mm headphones and use split-cue mode to compare a cued channel against the main mix.
• Send independent signals to the main sound system, DJ booth monitors and recording equipment through the dedicated outputs.

Ideal For

• Club and festival DJs
• Professional DJ booths
• Vinyl and digital DJ setups
• Traktor Scratch Pro 3 DVS systems
• Hybrid DJ and live electronic performances
• Turntables, media players and computer playback
• Synthesizers and drum machines
• External effects and signal-processing setups
• Live streaming and DJ mix recording
• Artists seeking an analogue mixer with integrated digital effects and multichannel USB audio
