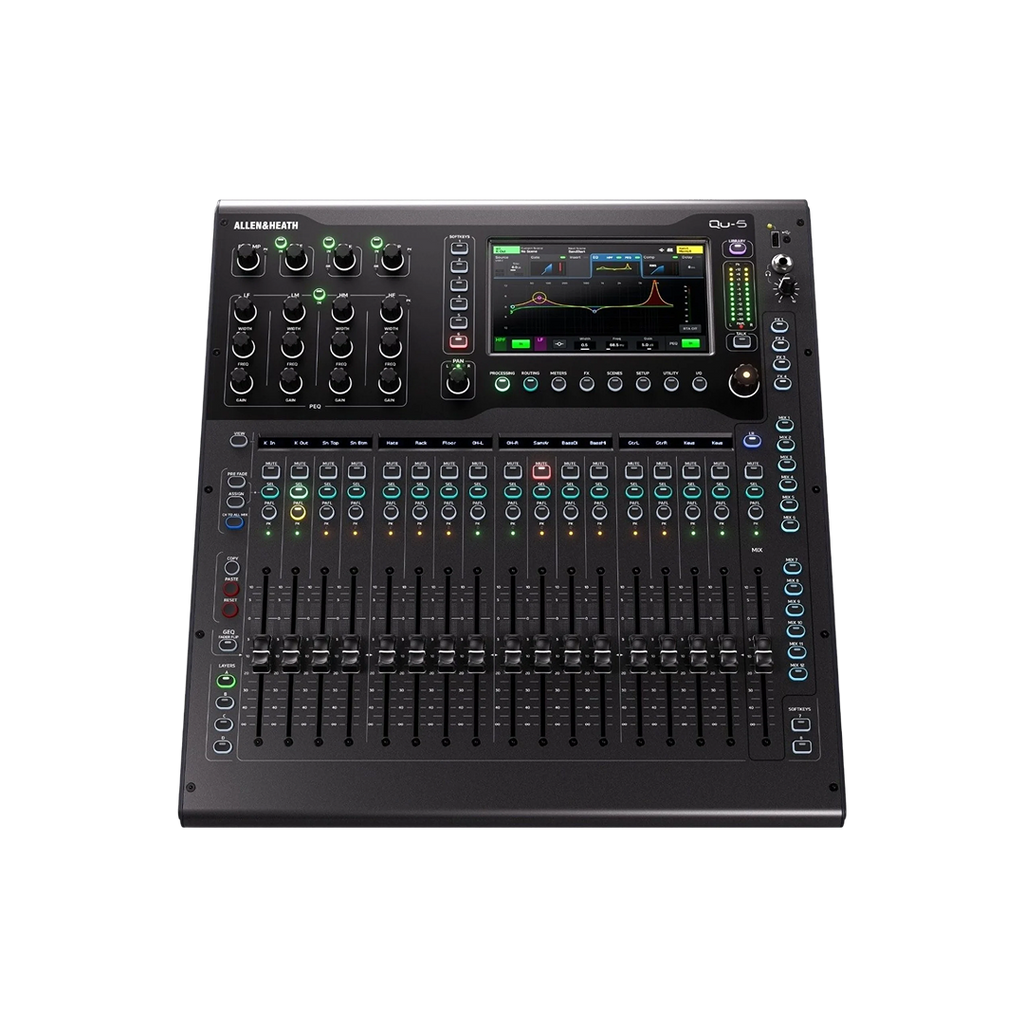

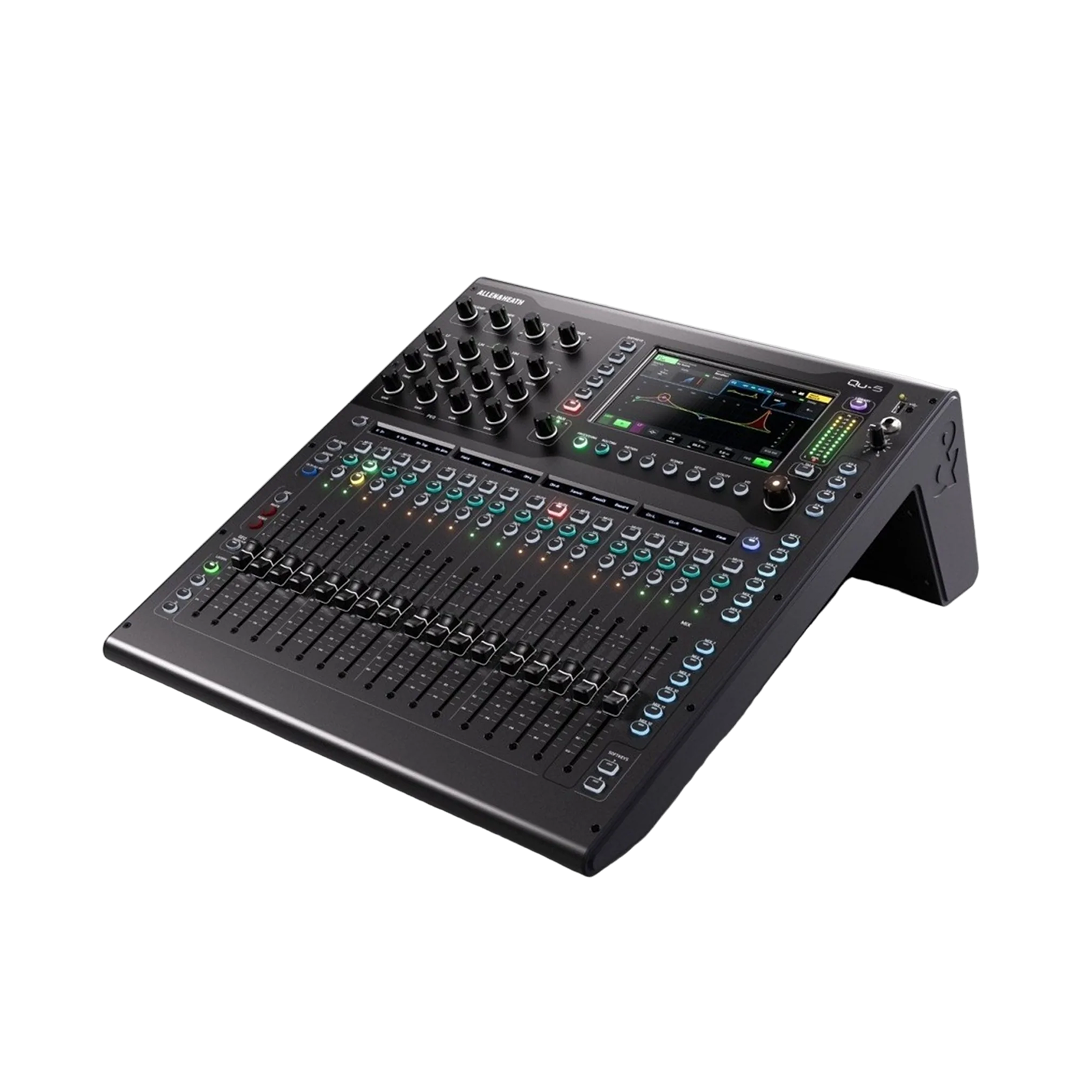

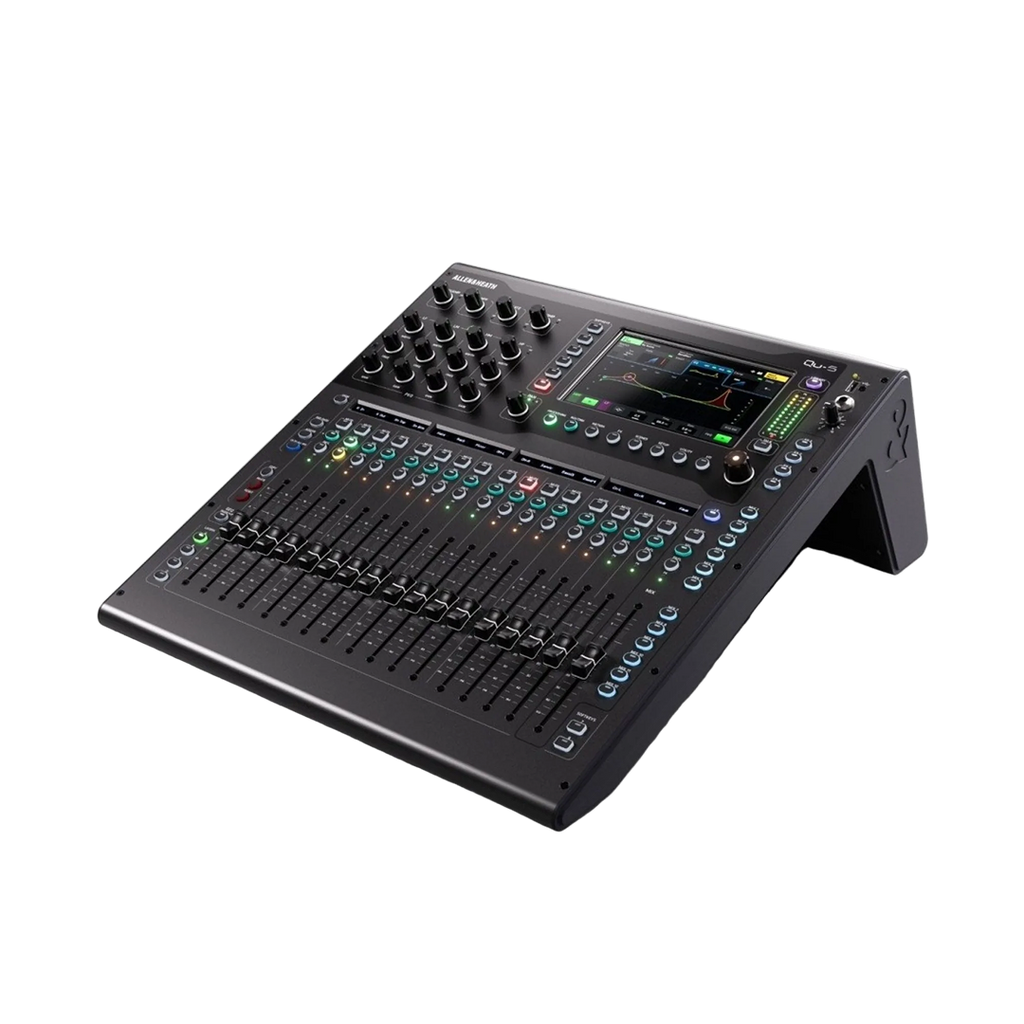

Allen & Heath Qu-5D
€2.222,00
Skip to product information
In stock
Allen & Heath Qu-5D
By Allen & Heath
€2.222,00
Need help?
Call Us / WhatsApp
+37120273545
Email us
hello@defset.eu
The Allen & Heath Qu-5D is a compact professional digital mixer featuring Allen & Heath’s next-generation 96kHz XCVI processing engine, integrated Dante networking, advanced multitrack recording capabilities, and extensive I/O expansion options. Designed for live sound, houses of worship, broadcast, AV installations, touring productions, and recording applications, the Qu-5D combines the familiar workflow of the original Qu series with a redesigned user interface, enhanced processing, motorised faders, custom layers, and built-in 16×16 Dante connectivity for seamless integration into modern audio networks.
Key features
- 36-channel / 12-bus digital mixer
- Built-in 16×16 Dante interface (48kHz / 96kHz)
- 96kHz XCVI FPGA processing engine
- 38 inputs to mix (32 mono/linkable + 3 stereo channels)
- 16 recallable mic preamps
- 17 motorised 100mm faders
- 7" capacitive touchscreen
- 6 internal FX engines with dedicated stereo returns
- 32×32 USB-C audio interface
- Multitrack recording to SD card
- 128×128 SLink expansion port
- Automatic microphone mixer (AMM)
- Remote control via Windows, macOS, iOS and Android apps
Overview
| Type | Digital Mixing Console with Dante |
| Mix Capacity | 38 Inputs to Mix (32 Mono + 3 Stereo) |
| Mic Preamps | 16 Recallable Mic/Line Preamps |
| Processing Engine | 96kHz XCVI FPGA Core |
| Display | 7" Capacitive Touchscreen |
| Faders | 17 × 100mm Motorised Faders |
| Buses | 12 Mixes (6 Mono/Linkable + 6 Stereo) |
| Matrix Outputs | 4 Mono/Linkable Matrix Mixes |
| FX Engines | 6 Internal Multi-FX Engines |
| USB Interface | 32×32 USB-C Audio Interface |
| Dante | 16×16 Dante Interface at 48kHz / 96kHz |
| SD Recording | 16×16 @ 96kHz or 32×32 @ 48kHz |
| SLink Port | 128×128 Intelligent Expansion Port |

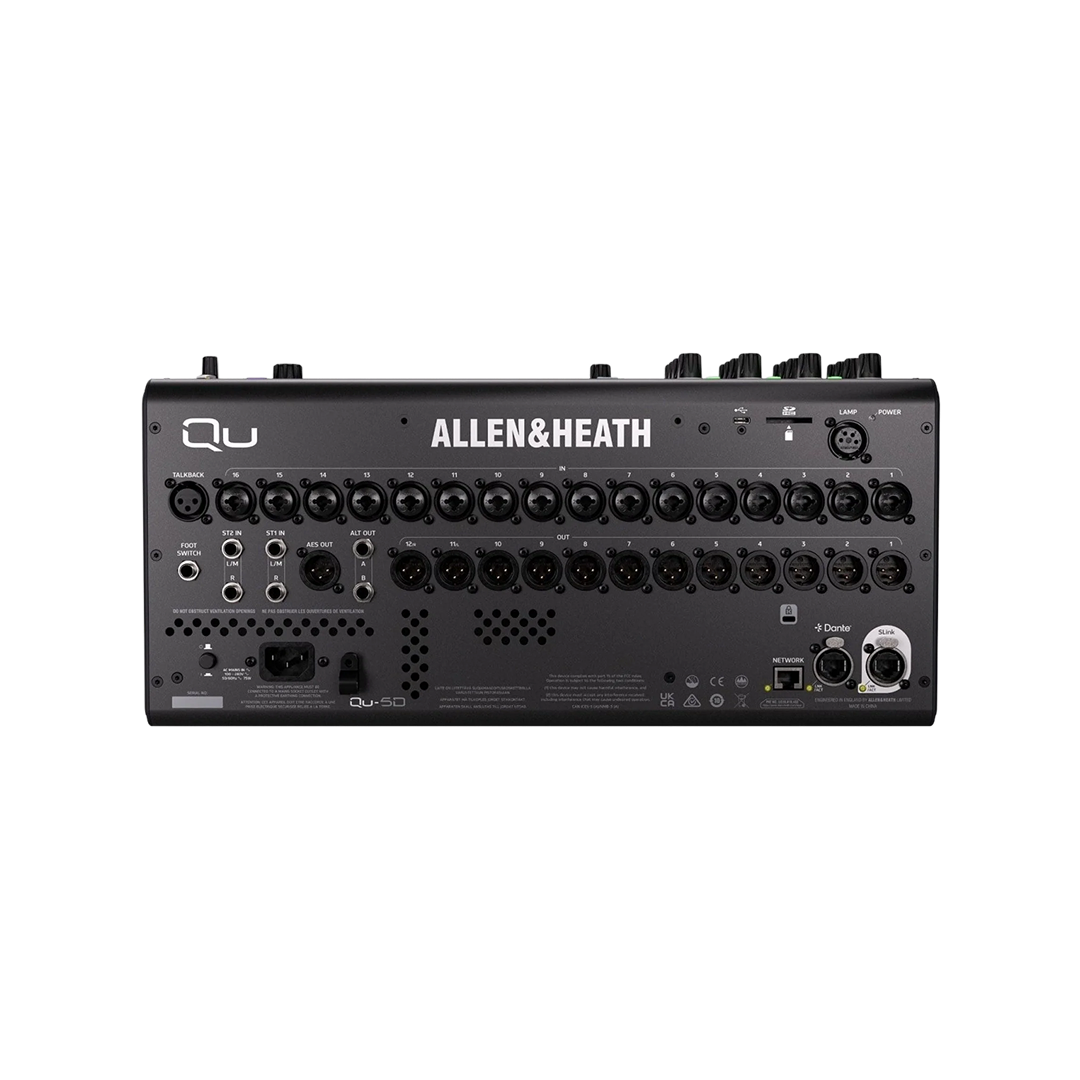

| Analogue Inputs | 16 XLR/TRS Combo Mic-Line + 2 Stereo Inputs + Talkback |
| Analogue Outputs | 12 XLR Outputs + 2 TRS Outputs |
| Digital Outputs | AES3 Stereo Output |
| Networking | Ethernet Control + Dedicated Dante Port |
| Dimensions | 440 × 476 × 213 mm |
| Weight | 10 kg |
Included Content
- Qu-5D digital mixer
- Integrated 16×16 Dante interface
- USB multitrack recording functionality
- SD card recording and playback system
- Power cable
- Remote control applications for desktop and mobile devices
Creative Tools
- Six stereo FX engines including reverb, delay, chorus, flanger and phaser
- 32-channel Automatic Microphone Mixer (AMM)
- Feedback Assistant with automatic suppression filters
- Fully patchable digital and analogue inserts
- 4-band parametric EQ and dynamics on every input channel
- 32×32 USB recording and playback for DAW integration
- Multitrack recording directly to SD card
- Dante networking for system integration and audio distribution
- SLink connectivity for Allen & Heath stageboxes and expanders
- Customisable fader layers and assignable SoftKeys
Ideal For
- Professional live sound engineers
- Houses of worship
- Corporate AV and conference facilities
- Broadcast and streaming production
- Theatres and performance venues
- Recording and rehearsal studios
- Touring productions requiring Dante networking
- Users upgrading from analogue mixers to digital workflows
- Installations requiring remote stagebox expansion
